Description



Features:

·HIGH-FREQUENCY OPERATION:4MHz FS max
·EXCELLENT LINEARITY:±0.02% typ at 2MHz
·PRECISION 5V REFERENCE
·DISABLE PIN
·LOW JITTER


Application

·INTEGRATING A/D CONVERSION
·PROCESS CONTROL
·VOLTAGE ISOLATION
·VOLTAGE-CONTROLLED OSCILLATOR
·FM TELEMETRY


Pinout

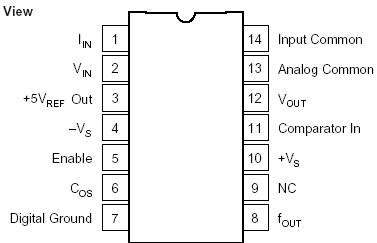

Connection Diagram


Specifications

Power Supply Voltages (+VS to VS) ................................................... 40V
fOUT Sink Current .............................................................................. 50mA
Comparator In Voltage ............................................................. 5V to +VS
Enable Input ............................................................................ +VS to VS
Integrator Common-Mode Voltage ................................... .1.5V to +1.5V
Integrator Differential Input Voltage ................................. +0.5V to 0.5V
Integrator Out (short-circuit) ...................................................... Indefinite
VREF Out (short-circuit) ............................................................... Indefinite
Operating Temperature Range
G Package ................................................................ ...55°C to +125°C
P Package ................................................................... ..40°C to +85°C
Storage Temperature
G Package ................................................................... 60°C to +150°C
P Package .................................................................... 40°C to +125°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The VFC110 voltage-to-frequency converter is a thirdgeneration VFC offering improved features and performance.These include higher frequency operation,an on-board precision 5V reference and a Disable function.

The precision 5V reference can be used for offsetting the VFC transfer function, as well as exciting transducers or bridges. The Enable pin allows several VFCs' outputs to be paralleled, multiplexed, or simply to shut off the VFC. The open-collector frequency output is TTL/CMOS-compatible. The output of VFC110 may be isolated by using an opto-coupler or transformer.

Internal input resistor, one-shot and integrator capacitors simplify applications circuits. These components  of VFC110 are trimmed for a full-scale output frequency of 4MHz at 10V input. No additional components are required for many applications.

The VFC110 is packaged in plastic and ceramic 14-pin DIPs. Industrial and military temperature range gradeouts are available.
