VFC121

Features: ·SINGLE SUPPLY OPERATION:+4.5V to +36V·fO = 1.5MHz max·LOW NONLINEARITY: 0.03% max at 100kHz, 0.1% max at 1MHz·HIGH INPUT IMPEDANCE·VOLTAGE REFERENCE OUTPUT·THERMOMETER OUTPUT: 1mV/°KApplication·INTEGRATING A/D CONVERSION·ANALOG SIGNAL TRANSMISSION·PHASE-LOCKED LOOP VCO·GALVANICALLY ISOL...

product image

VFC121 Picture
See larger image
SeekIC No. : 004541241 Detail

VFC121: Features: ·SINGLE SUPPLY OPERATION:+4.5V to +36V·fO = 1.5MHz max·LOW NONLINEARITY: 0.03% max at 100kHz, 0.1% max at 1MHz·HIGH INPUT IMPEDANCE·VOLTAGE REFERENCE OUTPUT·THERMOMETER OUTPUT: 1mV/°KAppli...

VFC121 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VFC121
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·SINGLE SUPPLY OPERATION:+4.5V to +36V
·fO = 1.5MHz max
·LOW NONLINEARITY: 0.03% max at 100kHz, 0.1% max at 1MHz
·HIGH INPUT IMPEDANCE
·VOLTAGE REFERENCE OUTPUT
·THERMOMETER OUTPUT: 1mV/°K


Application

·INTEGRATING A/D CONVERSION
·ANALOG SIGNAL TRANSMISSION
·PHASE-LOCKED LOOP VCO
·GALVANICALLY ISOLATED SYSTEMS


Pinout

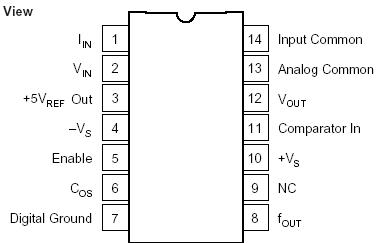

Connection Diagram


Specifications

Power Supply Voltage (+VS) ................................................................ 40V
fOUT Sink Current .............................................................................. 20mA
Comparator In Voltage ......................................................... 0.5V to +3V
Enable Input ......................................................................... 0.3V to +VS
Integrator Common-Mode Voltage .................................... 0V to +VS 2V
Integrator Differential Input Voltage ................................. 0.3V to +0.3V
VREF Out (short-circuit) ............................................................... Indefinite
Operating Temperature Range ...................................... 40°C to +85°C
Storage Temperature .................................................. 40°C to +125°C
Lead Temperature (soldering, 10s) ............................................... +300°C


Description

The VFC121 is a monolithic voltage-to-frequency converter consisting of an integrating amplifier, voltage reference, and one-shot charge pump circuitry. High-frequency complementary NPN/PNP circuitry is used to implement the charge-balance technique,achieving speed and accuracy far superior to previous
single power supply VFCs.

The high-impedance input of VFC121 accepts signals from ground potential to VS 2.5V. Power supplies from 4.5V to 36V may be used. A 2.6V reference voltage output may be used to excite sensors or bias external circuitry.A thermometer output voltage proportional to absolute temperature (°K) may be used as a temperature sensor or for temperature compensation of applications circuits.

Frequency output of VFC121 is an open-collector transistor. A disable pin forces the output to the high impedance state, allowing multiple VFCs to share a common transmission path.
