VG26(V)(S)18165C

Features: • Single 5V( %) or 3.3V( %) only power supply• High speed tRAC acess time: 50/60ns• Low power dissipation - Active wode : 5V version 660/605 mW (Mas) 3.3V version 432/396 mW (Mas) - Standby mode: 5V version 1.375 mW (Mas) 3.3V version 0.54 mW (Mas)• Extended - dat...

product image

VG26(V)(S)18165C Picture
See larger image
SeekIC No. : 004541334 Detail

VG26(V)(S)18165C: Features: • Single 5V( %) or 3.3V( %) only power supply• High speed tRAC acess time: 50/60ns• Low power dissipation - Active wode : 5V version 660/605 mW (Mas) 3.3V version 432/396...

VG26(V)(S)18165C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VG26(V)(S)18165C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Single 5V( %) or 3.3V( %) only power supply
• High speed tRAC acess time: 50/60ns
• Low power dissipation
  - Active wode : 5V version 660/605 mW (Mas) 3.3V version 432/396 mW (Mas)
  - Standby mode: 5V version 1.375 mW (Mas) 3.3V version 0.54 mW (Mas)
• Extended - data - out(EDO) page mode access
• I/O level: TTL compatible (Vcc = 5V) LVTTL compatible (Vcc = 3.3V)
• 1024 refresh cycle in 16 ms(Std.) or 128 ms(S-version)
• 4 refresh modes:
  - RAS only refresh
  - CAS - before - RAS refresh
  - Hidden refresh
  - Self-refresh(S-version)




Pinout

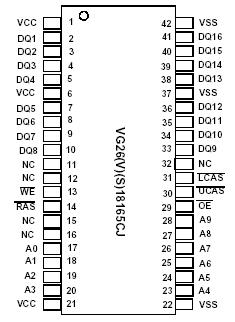

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to Vss         5V
                                                              3.3V  		VT -1.0 to + 7.0
-0.5 to + 4.6		 V
Supply voltage relative to Vss               5V
                                                              3.3V		 VCC -1.0 to + 7.0
-0.5 to + 4.6		 V
Short circuit output current IOUT 50 mA
Power dissipation PD 1.0 W
Operating temperature TOPT 0 to + 70 ¢J
Storage temperature TSTG -55 to + 125 ¢J



Description

The VG26(V)(S)18165C CMOS Dynamic RAM organized as 1,048,576 words x 16 bits with extended data out access mode.VG26(V)(S)18165C is fabricated with an advanced submicron CMOS technology and designed to operate from a single 5V only or 3.3V oniy power supply. Low voltage operation is more suitable to be used on battery backup,portable electronic application. A new refresh feature called "self-refresh" is supported and very slow CBR cycles are being performed. lt is packaged in JEDEC standard 42-pin plastic SOJ.
