Product Details

Description



Features:

• Single 3.3V( ±0.3V ) power supply
• Clock Frequency:100MHz
• Fully synchronous with all signals referenced to a positive clock edge
• Programmable CAS Iatency (2,3)
• Programmable burst length (1,2,4,8,& Full page)
• Programmable wrap sequence (Sequential/Interleave)
• Automatic precharge and controlled precharge
• Auto refresh and self refresh modes
• Dual Internal banks controlled by A11(Bank select)
• Simultaneous and independent two bank operation
• I/O level : LVTTL interface
• Random column access in every cycle
• X8 organization
• Input/output control by DQM
• 2048 refresh cycles/32ms
• Burst termination by burst stop and precharge command
• Burst read single write option



Pinout

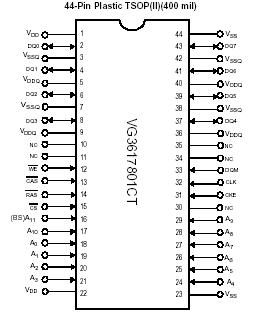

Connection Diagram


Specifications

Parameter Symbol Value Unit
Voltage on any pin relative to Vss
VIN,VOUT -1.0 to +4.6 V
Supply voltage relative to Vss VDD,VDDQ -1.0 to +4.6 V
Short circuit output current IOUT 50 mA
Power dissipation PD 1.0 W
Operating temperature TOPT 0 to + 70 ¢J
Storage temperature TSTG -55 to + 125 ¢J



Description

The VG3617801CT is CMOS Synchronous Dynamic RAMs organized as 1,048,576-word X 8-bit X 2- bank. VG3617801CT is fabricated with an advanced submicron CMOS technology and is designed to operate from a single 3.3V power supply. This is packaged using JEDEC standard pinouts and standard plastic TSOP.
