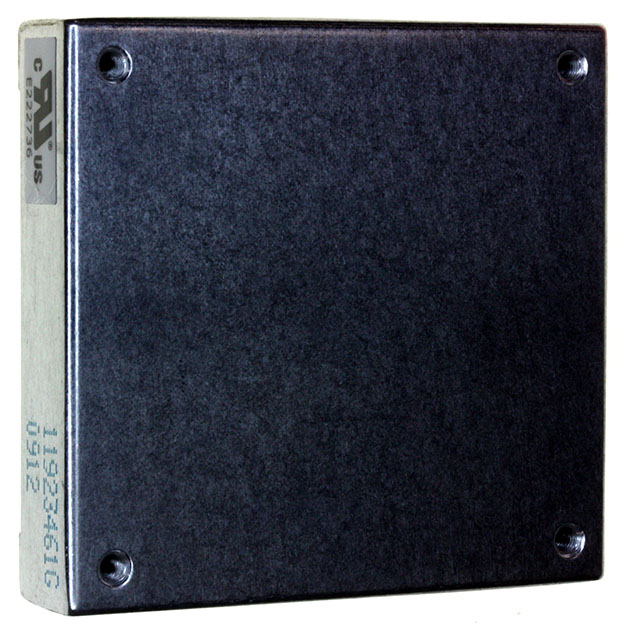

VHB75 Product Image

VHB Series Datasheet download

Five Points

Part Number: VHB75











Urgent Purchase

VHB75 Features

·37.5W-75W isolated output
·Efficiency to 85%
·300KHz switching frequency
·2:1 input range
·Regulated outputs
·Continuous short circuit protection
·Industry standard half-brick package
·Five-sided metal case

VHB75 Typical Application

Derating: The operating case temperature range of the VHB75 series is -40°C to +100°C. When operating the VHB75, proper derating or ooling is needed. Following is the derating curve of VHB75 without heat sink.

VHB75 datasheet

VHB75-D12-S12
PDF/DataSheet Download
