VN330SP-E

Power Driver ICs SOLID STATE RELAY

product image

VN330SP-E Picture
SeekIC No. : 00537054 Detail

VN330SP-E: Power Driver ICs SOLID STATE RELAY

floor Price/Ceiling Price

US $ 3.38~5.04 / Piece | Get Latest Price
Part Number:
VN330SP-E
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~1
  • 1~10
  • 10~100
  • 100~250
  • Unit Price
  • $5.04
  • $4.19
  • $3.71
  • $3.38
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Product : MOSFET Gate Drivers Type : High Side
Supply Voltage - Max : 36 V Supply Voltage - Min : 10 V
Supply Current : 10 mA Mounting Style : SMD/SMT
Package / Case : PowerSO-10 Packaging : Tube

Description

Rise Time :
Fall Time :
Maximum Power Dissipation :
Maximum Operating Temperature :
Supply Voltage - Max : 36 V
Mounting Style : SMD/SMT
Product : MOSFET Gate Drivers
Packaging : Tube
Supply Voltage - Min : 10 V
Type : High Side
Supply Current : 10 mA
Package / Case : PowerSO-10


Features:

Output current : 0.7A per channel
Digital input clamped at 32V minimum voltage
Shorted load and overtemperature protections
Built-in current limiter
Undervoltage shut-down
Open drain diagnostic output
Fast demagnetization of inductive loads
Conforms to IEC 61131-2

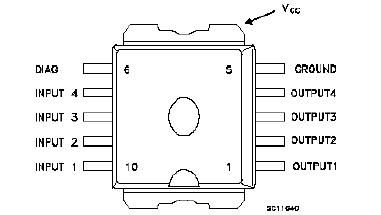

Pinout

  Connection Diagram


Specifications

Parameter
Symbol
Value
Units
Power supply voltage
V(BR)DSS
45
V
Reverse supply voltage
IOUT
0.3
MA
Output current (continuos)

IR

Internally limited
A
Reverse output current (per channel)
IIN
-6
mA
Input current (per channel)
-VCC
± 10
mA
Diag pin current

ISTAT

±10
mA
Electrostatic discharge (R = 1.5KΩ; C = 100pF)
VESD
2000
V
Single pulse avalanche energy per channel not simultaneously
Figure 4.
Ptot
Internally limited
°C
Storage Temperature
VCSENSE
-55 to 150
°C



Description

The VN330SP-E is a monolithic device made using STMicroelectronics VIPower technology, intended for driving four indipendent resistive or inductive loads, with one side connected to ground. Active current limitation avoids dropping the system power supply in case of shorted load. Built-in thermal shut-down protects the chip from overtemperature and short circuit. The open drain diagnostic output indicates overtemperature conditions.




Parameters:

Technical/Catalog InformationVN330SP-E
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CasePowerSO-10 Exposed Bottom Pad
Mounting TypeSurface Mount
TypeHigh Side
Voltage - Supply10 V ~ 36 V
On-State Resistance200 mOhm
Current - Output / Channel700mA
Current - Peak Output4A
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN330SP E
VN330SPE
497 5052 5 ND
49750525ND
497-5052-5
