VN772K

Power Switch ICs - Power Distribution Quad 40V 9A Hi-Side

product image

VN772K Picture
SeekIC No. : 00630333 Detail

VN772K: Power Switch ICs - Power Distribution Quad 40V 9A Hi-Side

floor Price/Ceiling Price

US $ 1.54~2.14 / Piece | Get Latest Price
Part Number:
VN772K
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 0~380
  • 380~500
  • 500~1000
  • 1000~2000
  • Unit Price
  • $2.14
  • $1.92
  • $1.62
  • $1.54
  • Processing time
  • 15 Days
  • 15 Days
  • 15 Days
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Number of Outputs : 4 On Resistance (Max) : 60 mOhms
Operating Supply Voltage : 5.5 V to 36 V Supply Current (Max) : 40 mA
Maximum Operating Temperature : + 150 C Mounting Style : SMD/SMT
Package / Case : SO-28

Description

On Time (Max) :
Off Time (Max) :
Mounting Style : SMD/SMT
On Resistance (Max) : 60 mOhms
Maximum Operating Temperature : + 150 C
Number of Outputs : 4
Operating Supply Voltage : 5.5 V to 36 V
Package / Case : SO-28
Supply Current (Max) : 40 mA


Pinout

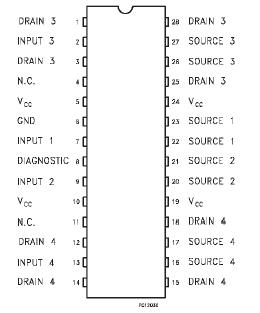

  Connection Diagram


Specifications

Symbol Parameter Value Unit

VCC

DC Supply Voltage

41 V

-VCC

Reverse DC Supply Voltage

-0.3 V

- IGND

DC Reverse Ground Pin Current

-200

mA

IOUT

DC Output current

Internally Limited A

-IOUT

Reverse DC Output Current

-6

A

IIN

DC Input Current

+/- 10 mA
ISTAT

DC Status Current

+/- 10 mA
VESD

Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC

4000
4000
5000
5000
V
V
V
V

Ptot

Power Dissipation TC=25°C

6 W
Tj

Junction operating temperature

Internally Limited

Tc

Case Operating Temperature

- 40 to 150

Tstg

Storage Temperature

-55 to 150




Description

The VN772K is a device formed by three monolithic chips housed in a standard SO-28 package: a double high side and two low side switches. Both the double high side and low side switches of VN772Kare made using |STMicroelectronics VIPower™ M0-3 Technology. This device is suitable to drive a DC motor in a bridge configuration as well as to be used as a quad switch for any low voltage application. The dual high side switches have built-in thermal shutdown to protect the chips from overtemperature and current limiter blocks to protect the device from short circuit. Status output is provided to indicate open load in off and on state and overtemperature.The low side switches are two OMNIFET II types (fully autoprotected Power MOSFET in VIPower™ technology). VN772K have built-in thermal shutdown,linear current limitation and overvoltage clamping.Fault feedback for thermal intervention can be detected by monitoring the voltage at the input pin.




Parameters:

Technical/Catalog InformationVN772K
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / Case28-SOIC (7.5mm Width)
Mounting TypeSurface Mount
TypeH Bridge
Voltage - Supply5.5 V ~ 36 V
On-State Resistance60 mOhm
Current - Output / Channel9A
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs4
Operating Temperature-40°C ~ 150°C
Drawing Number*
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN772K
VN772K
