VN820

Power Driver ICs 9A 36V High Side

product image

VN820 Picture
SeekIC No. : 00540490 Detail

VN820: Power Driver ICs 9A 36V High Side

floor Price/Ceiling Price

Part Number:
VN820
Mfg:
STMicroelectronics
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Type : High Side Driver Supply Voltage - Min : 5.5 V
Supply Current : 25 mA Maximum Power Dissipation : 65800 mW
Maximum Operating Temperature : + 150 C Mounting Style : Through Hole
Package / Case : Pentawatt-5 Packaging : Tube

Description

Rise Time :
Fall Time :
Supply Voltage - Max :
Product :
Packaging : Tube
Supply Voltage - Min : 5.5 V
Mounting Style : Through Hole
Supply Current : 25 mA
Maximum Operating Temperature : + 150 C
Type : High Side Driver
Package / Case : Pentawatt-5
Maximum Power Dissipation : 65800 mW


Pinout

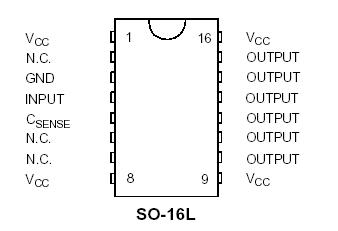

  Connection Diagram




Specifications

Symbol Parameter Value Unit
PowerSO-10™ PENTAWATT P2PAK SO-16L PPAK

VCC

DC Supply Voltage

41 V

-VCC

Reverse DC Supply Voltage

-0.3 V

- IGND

DC Reverse Ground Pin Current

-200

mA

IOUT

DC Output current

Internally Limited A

-IOUT

Reverse DC Output Current

-9

A

IIN

DC Input Current

+/- 10 mA
ISTAT

DC Status Current

+/- 10 mA
VESD

Electrostatic Discharge (Human Body Model: R=1.5K; C=100pF)
- INPUT
- STATUS
- OUTPUT
- VCC


4000
4000
5000
5000

V
V
V
V

EMAX

Maximum Switching Energy
(L=4mH; RL=0; Vbat=13.5V; Tjstart=150; IL=13A)

481 481     mJ
EMAX

Maximum Switching Energy (L=3.7mH;
RL=0; Vbat=13.5V; Tjstart=150ºC; IL=13A)

  438   mJ
EMAX

Maximum Switching Energy (L=4.48mH;
RL=0; Vbat=13.5V; Tjstart=150ºC; IL=13A)

    526  mJ

Ptot

Power dissipation TC=25°C

65.8

65.8 65.8 8.3 65.8

W

Tj

Junction operating temperature

Internally Limited

Tc

Case Operating Temperature

- 40 to 150

TSTG

Storage Temperature

-55 to 150




Description

The VN820, VN820SP, VN820-B5, VN820SO,VN820PT are monolithic devices made by using STMicroelectronics VIPower M0-3 Technology,intended for driving any kind of load with one side connected to ground.

Active VCC pin voltage clamp protects the device VN820 against low energy spikes (see ISO7637 transient compatibility table). Active current limitation combined with thermal shutdown and automatic restart protect the device against overload.

The device VN820 detects open load condition both is on and off state. Output shorted to VCC is detected in the off state. Device automatically turns off in case of ground pin disconnection.




Parameters:

Technical/Catalog InformationVN820
VendorSTMicroelectronics
CategoryIntegrated Circuits (ICs)
Package / CasePentawatt-5 (Vertical, Bent and Staggered Leads)
Mounting TypeThrough Hole
TypeHigh Side
Voltage - Supply5.5 V ~ 36 V
On-State Resistance40 mOhm
Current - Output / Channel9A
Current - Peak Output-
PackagingTube
Input TypeNon-Inverting
Number of Outputs1
Operating Temperature-40°C ~ 150°C
Lead Free StatusLead Free
RoHS StatusRoHS Compliant
Other Names VN820
VN820
497 3296 5 ND
49732965ND
497-3296-5
