VNS3NV04D-E

Configuration :
Maximum Operating Temperature :
Transistor Polarity : N-Channel
Gate-Source Breakdown Voltage : +/- 20 V
Mounting Style : SMD/SMT
Package / Case : SO-8
Packaging : Tube
Continuous Drain Current : 3.5 A
Drain-Source Breakdown Voltage : 45 V
Resistance Drain-Source RDS (on) : 120 m Ohms


Features:

Linear current limitation
Thermal shut down
Short circuit protection
Integrated clamp
Low current drawn from input pin
Diagnostic feedback through input pin
Esd protection
Direct access to the gate of the power mosfet analog driving)
Compatible with standard power mosfet

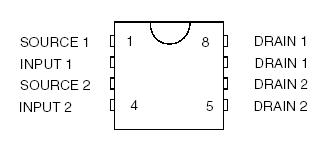

Pinout




Specifications

Parameter	Symbol	Value	Einheit Unit
Drain-source Voltage (VIN=0V)	VDS	Internally Clamped	°C
Input Voltage	VIN	Internally Clamped	°C
Input Current	IIN	+/-20	°C
Minimum Input Series Impedance	RIN MIN	10	mA
Drain Current	ID	Internally Clamped	MA
Reverse DC Output Current	IR	-15	mW
Electrostatic Discharge (R=1.5KW, C=100pF)	VESD1	4000	K/W
Electrostatic Discharge on output pin only (R=330W, C=150pF)	VESD2	16500	K/W
Total Dissipation at Tc=25°C	P tot	4	K/W
Operating Junction Temperature	Tc	Internally limited	K/W
Storage Temperature	Tstg	-55 to 150	K/W

Description

The VNS3NV04D-E is a device formed by two monolithic OMNIFET II chips housed in a standard SO-8 package. The OMNIFET II are designed in STMicroelectronics VIPower M0-3 Technology: VNS3NV04D-E are intended for replacement of standard Power MOSFETs from DC up to 50KHz applications. Built in thermal shutdown, linear current limitation and overvoltage clamp protects the chip in harsh environments. Fault feedback can be detected by monitoring the voltage at the input pin.

Parameters:

Technical/Catalog Information	VNS3NV04D-E
Vendor	STMicroelectronics
Category	Integrated Circuits (ICs)
Package / Case	8-SOIC (3.9mm Width)
Mounting Type	Surface Mount
Type	Low Side
Voltage - Supply	-
On-State Resistance	120 mOhm
Current - Output / Channel	-
Current - Peak Output	5A
Packaging	Tube
Input Type	Non-Inverting
Number of Outputs	2
Operating Temperature	-
Drawing Number	*
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VNS3NV04D E VNS3NV04DE
