VS-751

Features: · 5 x 7.5 x 2.5 mm Package· Output Frequencies from 500 MHz to 850 MHz· 3.3 V Operation· Low Jitter < 0.25 ps-rms across 50 kHz to 80 MHz· LV-PECL Configuration with Fast Transition Times· Complementary Outputs· Frequency Select· Patent Pending Technology· Product is free of lead and ...

product image

VS-751 Picture
See larger image
SeekIC No. : 004543271 Detail

VS-751: Features: · 5 x 7.5 x 2.5 mm Package· Output Frequencies from 500 MHz to 850 MHz· 3.3 V Operation· Low Jitter < 0.25 ps-rms across 50 kHz to 80 MHz· LV-PECL Configuration with Fast Transition Tim...

VS-751 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VS-751
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 5 x 7.5 x 2.5 mm Package
· Output Frequencies from 500 MHz to 850 MHz
· 3.3 V Operation
· Low Jitter < 0.25 ps-rms across 50 kHz to 80 MHz
· LV-PECL Configuration with Fast Transition Times
· Complementary Outputs
· Frequency Select
· Patent Pending Technology
· Product is free of lead and compliant to
· EC RoHS Directive



Application

· 1-2-4 Gigabit Fibre Channel
· 10 Gigabit Fibre Channel
· 10GbE LAN / WAN
· OC-192
· SONET / SDH

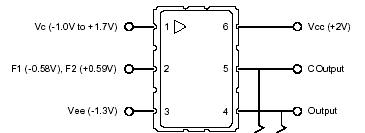

Pinout

Connection Diagram


Specifications

Power Supply VCC .............................................................0 to 6 V
Input Current IIN ................................................................100 mA
Output Current IOUT .............................................................25 mA
Voltage Control Range VC ..............................................0 to VCC V
Storage Temperature TSTR ........................................-55 to 125 °C
Soldering Temperature / Duration TPEAK / tP ........260 / 40 °C / sec


Description

The VS-751 is a SAW based voltage controlled oscillator that operates at the fundamental frequencies of the internal SAW filters. These SAW filters are high-Q quartz devices that enable the circuit to achieve low phase jitter performance over a wide operating temperature range. The dual oscillator is housed in a hermetically sealed leadless surface mount package offered on tape and reel. It has a frequency select function that enables either "Frequency 1" or "Frequency 2."
