Features:

MPEG audio layer 3 decoder (ISO11172-3)
Supports MPEG 1 & 2, and 2.5 extensions, all their sample rates and bit rates, in mono and stereo
Supports PCM input
Supports VBR (variable bitrate)
Can be used as a slave co-processor
Operates with single clock 12..13 MHz or 24..26 MHz
Extremely low-power operation
On-chip high-quality stereo DAC with no phase error between channels
Internal Op-Amp in BGA-49 and LQFP-48 packages
Stereo earphone driver capable of driving a 30­ load.
Separate 2.5 .. 3.6V operating voltages for analog and digital
4 KiB On-chip RAM for user code
Serial control and data interfaces
New functions may be added with software


Pinout

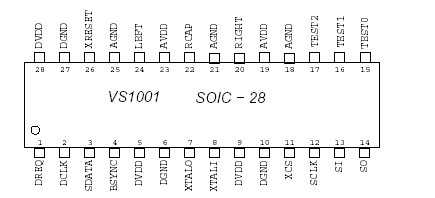

Connection Diagram


Specifications

Parameter
Symbol
 Min
Max
Unit
Analog Positive Supply
AVDD
-0.3
3.6
V
Digital Positive Supply
DVDD
-0.3
3.6
V
Current at Any Digital Output


±50
mA
Voltage at Any Digital Input

DGND-1.0
DVDD+0.31
V
Operating Temperature


-30
+85
°C
Functional Operating Temperature
-40
+95
°C
Storage Temperature


-65
+150
°C



Description

VS1001k is a single-chip solution for an MPEG layer 3 audio decoder. The chip contains a highperformance low-power DSP processor (VS DSP), working memory, 4 KiB program RAM and 0.5 KiB data RAM for user applications, serial control and input data interfaces, and a high-quality oversampling variable-sample-rate stereo DAC, followed by an earphone amplifier and a ground buffer.

VS1001k receives its input bitstream through a serial input bus, which it listens to as a system slave. The input stream is decoded and passed through a analog/digital hybrid volume control to an 18-bit oversampling multi-bit sigma-delta DAC. The decoding is controlled via a serial control bus. In addition to the basic decoding, it is possible to add application specific features, like DSP effects, to the user RAM memory.
