VS902SL

Features: • ESD / transient protection of high-speed data lines in 3.3 /5/12V applications.• Smallest form factor down to 1.0×0.6×0.4mm3.• Maximum working voltage: -8/+14V.• Very low capacitance down to 2pF (When used in series).• Pb-free (RoHS compliant) package.Appl...

product image

VS902SL Picture
See larger image
SeekIC No. : 004543279 Detail

VS902SL: Features: • ESD / transient protection of high-speed data lines in 3.3 /5/12V applications.• Smallest form factor down to 1.0×0.6×0.4mm3.• Maximum working voltage: -8/+14V.• ...

VS902SL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VS902SL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/12/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• ESD / transient protection of high-speed data lines in 3.3 /5/12V applications.
• Smallest form factor down to 1.0×0.6×0.4mm3.
• Maximum working voltage: -8/+14V.
• Very low capacitance down to 2pF (When used in series).
• Pb-free (RoHS compliant) package.






Application

• USB 2.0.
• Mobile communication.
• STB, MP3, DVD, DSC, LCD....
• Notebooks and desktop computers, peripherals.

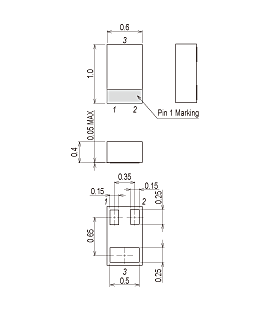

Pinout






Specifications

Parameter Symbol Conditions Ratings Unit
ESD Discharge *1 VESD Between all pins 15 kV
Peak Pulse Current *2 Ipp Tp=8/20s 1 A
Operating Temperature Range Top -55 to +125
Storage Temperature Tstg -65 to +150

Note : *1 VESD according to IEC61000-4-2
*2 Ipp according to IEC61000-4-5
Marking : B3


Absolute maximum ratings
VRWM min *max [V]
-		 -8
V(BR) min [V]
I(BR)=1mA, pin3 to 1/2		 8.5
IR max [nA]
VR=3V, between all pins		 50
VCL typ [V]
VESD=+15kV(concact), from pin1/2 to 3		 26
CT max [pF]
VR=0V, f=1MHz, from pin1/2 to 3		 7
ESD Discharge
IEC61000-4-2 contact		 25
