VSC6048

Features: • 100MHz/200MHz Dynamic Reprogram Frequency for Incrementing and Decrementing• Internal or External High-Speed Clock Option• Low Power: 8 Watts, max• Low Cost 160-Pin PQFP Packaging• 8 Fully Integrated Timing Generators for ATE Applications• 10/5ns Del...

product image

VSC6048 Picture
See larger image
SeekIC No. : 004543327 Detail

VSC6048: Features: • 100MHz/200MHz Dynamic Reprogram Frequency for Incrementing and Decrementing• Internal or External High-Speed Clock Option• Low Power: 8 Watts, max• Low Cost 160-P...

VSC6048 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
VSC6048
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 100MHz/200MHz Dynamic Reprogram Frequency for Incrementing and Decrementing
• Internal or External High-Speed Clock Option
• Low Power: 8 Watts, max
• Low Cost 160-Pin PQFP Packaging
• 8 Fully Integrated Timing Generators for ATE Applications
• 10/5ns Delay Range, 10ps Resolution
• Fully Digital Interface. No Off-Chip DACs or Trim Components Required
• ± 4 LSB Differential Non-Linearity

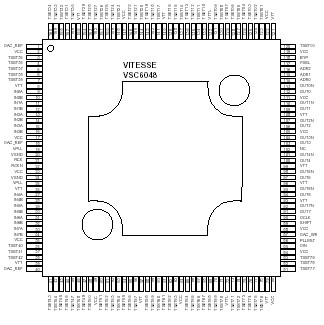

Pinout

Connection Diagram


Specifications

Power Supply Voltage (VTT) .......................................................................................................-2.5V to +0.5V
Power Supply Voltage (VDACREF) ..............................................................................................-0.5V to +4.3V
Power Supply Voltage (VTTL) .....................................................................................................-0.5V to +4.3V
ECL Input Voltage Applied, (VIN ECL) ...............................................................................+0.5V to VTT + -0.5V
TTL Input Voltage Applied, (VIN TTL)................................................................................. -0.5V to VTTL + 1.0V
Output Current (IOUT) ............................................................................................................................ 50mA
Case Temperature Under Bias (TC)......................................................................................... -55 to + 125
Storage Temperature (TSTG).................................................................................................. -65 to + 150
