Product Details

Description

Features:

• Typical Rise Times of 100ps
• High-Speed Operation (Up to 2.5Gb/s NRZ Data)
• 3V Output Voltage Compliance
• Single-Ended or Differential Input Operation
• Single Power Supply: +5V or -5.2V
• Direct Access to Modulation and Bias FETs
• On-Die MUX for Clocked or Unclocked Applications
• On-Chip 50Ω Input Clock and Data Termination

Application

• SONET/SDH @ 622Mb/s, 1.244Gb/s, 2.488Gb/s
• Full-Speed Fibre Channel (1.062Gb/s)

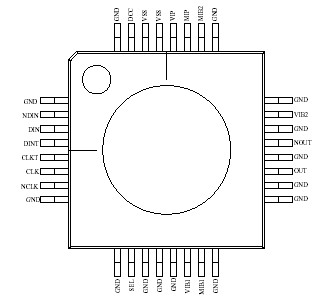

Pinout

Connection Diagram

Specifications

Power Supply Voltage (V_SS) ........................................................................................ V_CC to -6.0V
Operating Junction Temperature Range (T_J)......................................................... -55°C to +125°C
Storage Temperature Range (T_S).......................................................................... -65°C to +150°C

Description

The VSC7937 is a single -5.2V supply, 2.5Gb/s voltage driver with direct access to the output modulation and bias FETs. The output stage can drive 60mA into 50Ω with adequate output voltage compliance. Output bias and modulation currents are set by external components allowing precision monitoring and setting of the output voltage levels.
