VSP2101Y

Architecture :
Input Voltage :
Interface Type :
SNR :
Voltage Reference :
Supply Voltage - Max :
Supply Voltage - Min :
Maximum Power Dissipation :
Input Signal Type :
Number of ADC Inputs :
Maximum Operating Temperature : + 85 C
Packaging : Reel
Resolution : 10 bit
Number of Converters : 1
Minimum Operating Temperature : - 25 C
Package / Case : LQFP-48
Conversion Rate : 27000 KSPs


Features:

` CCD SIGNAL PROCESSING: Correlated Double Sampling Black Level Clamping 2 to +34dB Gain Ranging High SNR: 53dB
` 10-BIT A/D CONVERSION: Up to 27MHz Conversion Rate No Missing Codes
` PORTABLE OPERATION:
    Low Voltage: 2.7V to 3.6V
    Low Power: 190mW at 3.0V
` LOW POWER: 160mW at 2.7V
` POWER-DOWN MODE: 18mW


Application

·VIDEO CAMERAS
·DIGITAL STILL CAMERAS
·PC CAMERAS
·SECURITY CAMERAS

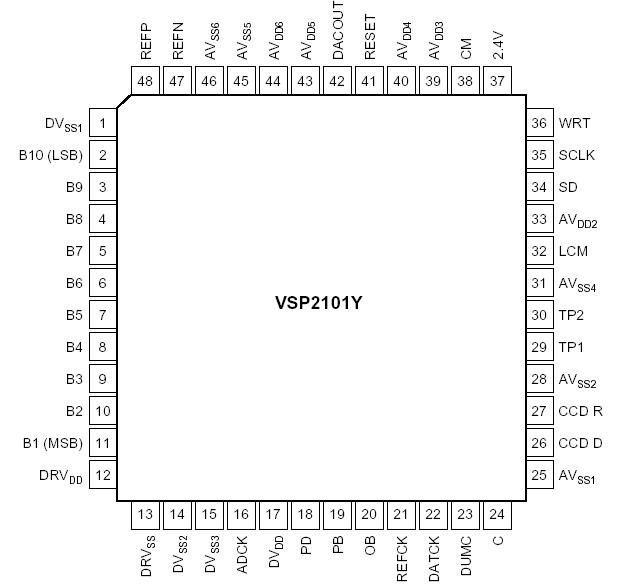

Pinout




Specifications

Power Supply (+V_S) ........................................................... +6V
Analog Input ...........................................0.3V to (+V_S +0.3V)
Logic Input ............................................  0.3V to (+V_S +0.3V)
Case Temperature ..................................................... +100°C
Junction Temperature ................................................ +150°C
Storage Temperature ................................40°C to +150°C


Description

The VSP2101Y is a complete digital camera IC, providing signal conditioning and 10-bit analog-to-digital conversion for the output of a CCD array.

The primary CCD channel provides correlated double sampling to extract the video information from the pixels, 2dB to +34dB gain ranging with digital control for varying illumination conditions, and black level clamping for an accurate black reference. Input signal clamping and offset correction of the CDS is also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change. An on-chip general purpose 10-bit digital-to-analog converter allows you to obtain analog control voltage for iris control.

The VSP2101Y is available in a 48-lead LQFP package and operates from a single +3V supply.

Parameters:

Technical/Catalog Information	VSP2101Y
Vendor	Texas Instruments
Category	Integrated Circuits (ICs)
Mounting Type	Surface Mount
Package / Case	48-LQFP
Type	CCD Signal Processor
Packaging	Tray
Applications	Camera
Drawing Number	296; 4040052; PT; 48
Lead Free Status	Lead Free
RoHS Status	RoHS Compliant
Other Names	VSP2101Y VSP2101Y
