VSP2210

CCD SIGNAL PROCESSING: Correlated Double Sampling (CDS) Programmable Black Level Clamping
PROGRAMMABLE GAIN AMPLIFIER (PGA): 6 to +42dB Gain Ranging
10-BIT DIGITAL DATA OUTPUT: Up to 20MHz Conversion Rate No Missing Codes
79dB SIGNAL-TO-NOISE RATIO
ON-CHIP GENERAL-PURPOSE 8-BIT DIGITAL-TO-ANALOG CONVERTERS
PORTABLE OPERATION: Low Voltage: 2.7V to 3.6V Low Power: 97mW (typ) at 3.0V Stand-By Mode: 6mW

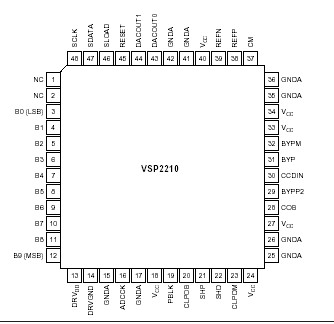

The VSP2210 is a complete mixed-signal processing IC for digital cameras, providing signal conditioning and analog-to-digital conversion for the output of a CCD array. The primary CCD channel provides Correlated Double Sampling (CDS) to extract video information from the pixels, 6dB to +42dB gain ranging with digital control for varying illumination conditions, and black level clamping for an accurate black reference. Input signal clamping and offset correction of the input CDS is also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change. The two on-chip general-purpose 8-bit digital-to-analog converters allow you to obtain analog various control voltage, such as VSUB control of CCD imager. The VSP2210Y is available in an LQFP-48 package and operates from a single +3V/+3.3V supply.
