VSP2232

Features:

 CCD Signal Processing
      Correlated Double Sampling (CDS)
      Programmable Black Level Clamping
Programmable Gain Amplifier (PGA)
      6-dB to 42-dB Gain Ranging
10-Bit Digital Data Output
      Up to 36-MHz Conversion Rate
     No Missing Codes
76-dB Signal-to-Noise Ratio
Portable Operation
      Low Voltage: 2.7 V to 3.6 V
      Low Power: 130 mW (typ) at 3.0 V
      Standby Mode: 6 mW

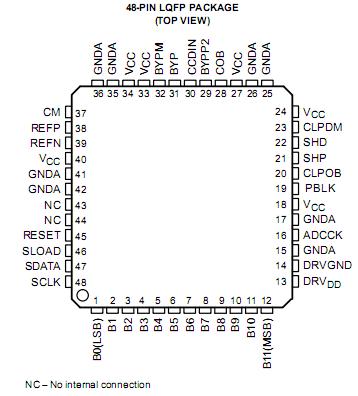

Pinout




Specifications

Supply voltage (VCC, DRVDD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  4 V
Supply voltage differences (among VCC) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.1 V
Ground voltage differences (among GNDA)  . . . . . . . . . . . . . .  . . . . . . . . . . . . . .±0.1 V
Digital input voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .0.3 V to 5.3 V
Analog input voltage  . . . . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . .0.3 V to VCC + 0.3 V
Input current (any pins except supplies)  . . . . . . . . . . . . . . .. . . . . . . . . . . . . . ±10 mA
Operating temperature, TA  . . . . . . . . . . . . . . . . . . . . . . . . .. . . . . . . .25°C to 85°C
Storage temperature, Tstg  . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55°C to 125°C
Junction temperature, TJ . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 150°C
Lead temperature (soldering) 260°C, 5 sec . . . . . . . . . . . .  . . . . .. . . . . 260°C, 5 sec
Package temperature (IR Reflow, Peak)  . . . . . . . . . . . . . . . . . . . . . . . . .235°C, 10 sec


Description

The VSP2232 is a complete mixed-signal processing IC for digital cameras that provides signal conditioning and analog-to-digital conversion for the output of a CCD array. The primary CCD channel provides correlated double sampling (CDS) to extract the video information from the pixels, a 6-dB to 42-dB gain with digital control for varying illumination conditions, and black level clamping for an accurate black level reference.

Input signal clamping and offset correction of the input CDS is also performed. The stable gain control is linear in dB. Additionally, the black level is quickly recovered after gain change.

The VSP2232Y is pin-to-pin compatible with the VSP2262Y (12-bit 20 MHz) one-chip product.

The VSP2232Y is available in a 48-pin LQFP package and operates from a single 3-V/3.3-V supply.
