Features:

INTEGRATED TRIPLE-CORRELATED DOUBLE SAMPLER
OPERATION MODE SELECTABLE: 1-Channel, 3-Channel CCD Mode, 8Msps
PROGRAMMABLE GAIN AMPLIFIER: 0dB to +13dB
SELECTABLE OUTPUT MODES: Normal/Demultiplexed
OFFSET CONTROL RANGE: ±500mV
+3V, +5V Digital Output
LOW POWER: 300mW (typ)
LQFP-48 SURFACE-MOUNT PACKAGE


Pinout

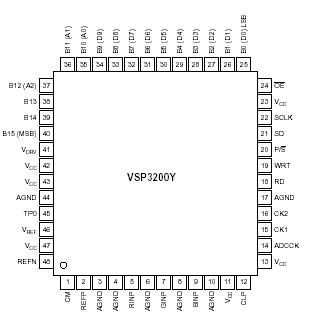

Connection Diagram


Specifications

Supply Voltage: VCC, VDRV .............................................................+6.5V
Supply Voltage Differences: Among VCC ....................................... ±0.1V
GND Voltage Differences: Among GNDA ........................................ ±0.1V
Digital Input Voltage ............................................ 0.3V to (VCC + 0.3V)
Analog Input Voltage ........................................... 0.3V to (VCC + 0.3V)
Input Current (Any Pins Except Supplies) ................................... ±10mA
Ambient Temperature Under Bias .............................. 40°C to +125°C
Storage Temperature ................................................ 55°C to +125°C
Junction Temperature ............................................................... +150°C
Lead Temperature (soldering, 5s) ............................................ +260°C
Package Temperature (IR Reflow, peak, 10s) ........................... +235°C


Description

The VSP3200 and VSP3210 are complete CCD image processors that operate from single +5V supplies. This complete image processor includes three Correlated Double Samplers (CDSs) and Programmable Gain Amplifiers (PGAs) to process CCD signals.

The VSP3200 is interface compatible with the VSP3210, which is a 16-bit, one-chip product.

The VSP3210 is pin-to-pin compatible with VSP3100, when in demultiplexed output mode.

The VSP3200 and VSP3210 can be operated from 0°C to +85°C, and are available in LQFP-48 packages.
