Product Details

Description

Features:

• Compliant with Intel® CK-Titan clock synthesizer/driver specifications
• Multiple output clocks at different frequencies
   -Three pairs of differential CPU outputs, up to 200 MHz
   -Ten synchronous PCI clocks, three free-running
   -Six 3V66 clocks
   -Two 48-MHz clocks
   -One reference clock at 14.318 MHz
   -One VCH clock
• Spread Spectrum clocking (down spread)
• Power-down features (PCI_STOP#, CPU_STOP# PWR_DWN#)
• Three Select inputs (Mode select and IC Frequency Select)
• OE and Test Mode support
• 56-pin SSOP package and 56-pin TSSOP package

Pinout

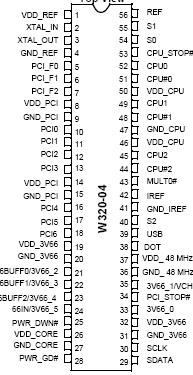

Connection Diagram

Specifications

Supply Voltage.......................................................0.5 to +7.0V
Input Voltage.............................................. ...0.5V to VDD+0.5
Storage Temperature (Non-Condensing) ... 65°C to +150°C
Max. Soldering Temperature (10 sec) .......................... +260°C
Junction Temperature................................................ ...+150°C
Package Power Dissipation....................................................1
Static Discharge Voltage
(per MIL-STD-883, Method 3015) ............................. ...> 2000V
