Product Details

Description

Features:

· Wide operating voltage range: 1.2 to 3.6 volts
· Serves as demo chip for W523X series products (no built-in ROM)
· Programmable speech synthesizer
· 4-bit ADPCM synthesis method and 8-bit D/A converter
· RC oscillator with built-in capacitor; voice output frequency typically at 6 KHz
· Provides 4 trigger inputs
· Drives 2 flash LEDs for two batteries
· 3 STOP output signals
· Flexible functions programmable through the following:
   - LD (load), JP (jump) commands
   - Four registers: R0, EN, STOP, and MODE
   - Conditional instructions
   - Speech equation
   - Global repeat (GR) setting
   · Programmable power-on initialization (POI), which can be interrupted by trigger inputs
· Interrupt or non-interrupt for rising or falling edge of each trigger pin (this feature determines
   retriggerable, non-retriggerable, overwrite, and non-overwrite features of each trigger pin)
· LED On/Off control can be set independently in each GO instruction of speech equation
· Independent control of LED 1 and LED 2
· Total of 256 voice group entries available for programming
(Including eight hardware and 248 software group entry points)
· 20 to 40 mS debounce time
· Provides the following mask options:
   - LED flash frequency: 3 Hz/6 Hz/Off
   - LED1 section-controlled: Yes/No
   - LED2 section-controlled/STPC-controlled
   - AUD output current: 1 mA with one battery, 3 mA with two batteries

Pinout

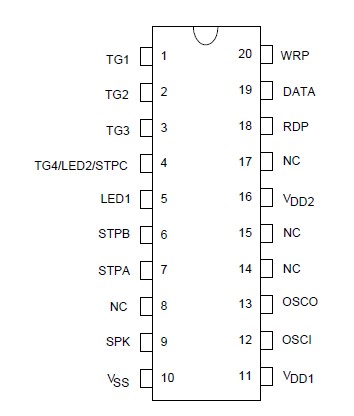

Connection Diagram

Specifications

PARAMETER	SYMBOL	CONDITIONS	RATED	UNIT
Power Supply	V_DD-V_SS	-	-0.3 to +7.0	V
Input Voltage	V_IN	All Inputs	V_SS -0.3 to V_DD +0.3	V
Storage Temp.	T_STG	-	-55 to +150	°C
Operating Temp.	T_OPR	-	0 to +70	°C

Description

The W5230 is a CMOS IC that is used solely for the purpose of demonstrating W523X series Low Voltage PowerSpeech products.

The W5230 employs the same JUMP-GO architecture as Winbond's other PowerSpeech products. Unlike standard products, however, the W5230 does not include built-in memory, because the chip is designed to serve only as a demonstration chip for the W523X series ICs. Hence the W5230 must be operated with an external memory device (e.g., an OTP memory). The W5230's LOAD and JUMP commands and four programmable registers provide powerful user-programmable functions that make this chip suitable for a wide range of speech IC applications.
