W741E260

Features: • Operating voltage: 2.4V to 5.5V (LCD drive voltage: 3.0V, or 4.5V)• Crystal/Ceramic oscillator: up to 4 MHz• RC oscillator: up to 4 MHz• Dual-clock operation is selected by code option• Main oscillator − Crystal or RC oscillation circuit can be selec...

product image

W741E260 Picture
See larger image
SeekIC No. : 004544936 Detail

W741E260: Features: • Operating voltage: 2.4V to 5.5V (LCD drive voltage: 3.0V, or 4.5V)• Crystal/Ceramic oscillator: up to 4 MHz• RC oscillator: up to 4 MHz• Dual-clock operation is s...

W741E260 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W741E260
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/22

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Operating voltage: 2.4V to 5.5V (LCD drive voltage: 3.0V, or 4.5V)
• Crystal/Ceramic oscillator: up to 4 MHz
• RC oscillator: up to 4 MHz
• Dual-clock operation is selected by code option
• Main oscillator
   − Crystal or RC oscillation circuit can be selected by code option
   − In crystal mode, high-frequency (400 KHz to 4 MHz) or low-frequency (32.768 KHz) oscillation
      should be selected by code option
   − In RC mode, attention must be paid to the high/low frequency oscillation option, because the LCD
      driver frequency and the ROM code emulation time are related to this option.
• Sub-oscillator
   − Connect to 32768 Hz crystal only
   − Used in dual-clock operation
• Memory
   − 2048 x 16-bit program flash EEPROM (including 2K x 4-bit look-up table)
   − 128 x 4-bit data RAM (including 16 working registers)
   − 32 x 4 LCD data RAM
• 21 input/output pins
   − Ports for input only: 2 ports/8 pins
   − Input/output ports: 2 ports/8 pins
   − High sink current for LED driving: 1 port/4 pins
   − MFP output pin: 1 pin (MFP)
• Power-down mode
   − Hold function: no operation (excluding main oscillator and sub-oscillator)
   − Stop function: no operation (excluding sub-oscillator)


Pinout

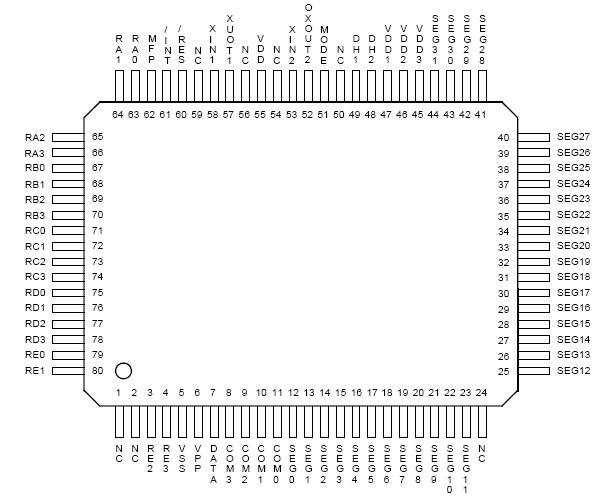

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W741E260 is a high-performance 4-bit microcontroller (C) that provides an LCD driver and the flash EEPROM for the program memory. The device contains a 4-bit ALU, two 8-bit timers, two dividers (for two oscillators) in dual-clock operation, a 32 * 4 LCD driver, and five 4-bit I/O ports (including 1 output port for LED driving). There are also five interrupt sources and 8-level subroutine nesting for interrupt applications. The W741E260 operates on very low current and has three power reduction modes, hold mode and stop mode in single-clock operation and the dual-clock slow operation, which help to minimize power dissipation.

This chip W741E260 is available for W741C250 and W741C260 bodies, which can be selected by option code. The W741E260 is suitable for end product manufacturer engineering testing and earlier samples before mass production.
