W742C810

Features: · Operating voltage: 2.4V-3.6V· Dual-clock operation· Main oscillator - Connect to 3.58 MHz crystal only· Sub-oscillator - Connect to 32768 Hz crystal only· Memory - 8192 x 16 bit program ROM (including 32K x 4 bit look-up table) - 1024 x 4 bit data RAM (including 16 nibbles x 16 pages w...

product image

W742C810 Picture
See larger image
SeekIC No. : 004544940 Detail

W742C810: Features: · Operating voltage: 2.4V-3.6V· Dual-clock operation· Main oscillator - Connect to 3.58 MHz crystal only· Sub-oscillator - Connect to 32768 Hz crystal only· Memory - 8192 x 16 bit program ...

W742C810 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W742C810
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Operating voltage: 2.4V-3.6V
· Dual-clock operation
· Main oscillator
    - Connect to 3.58 MHz crystal only
· Sub-oscillator
    - Connect to 32768 Hz crystal only
· Memory
    - 8192 x 16 bit program ROM (including 32K x 4 bit look-up table)
    - 1024 x 4 bit data RAM (including 16 nibbles x 16 pages working registers)
    - 40 x 4 LCD data RAM
· 24 input/output pins
    - Port for input only: 1 ports/4 pins
    - Input/output ports: 3 ports/12 pins
    - High sink current output port for LED driving: 1 port /4 pins
    - Port for output only: 1 port/ 4 pins
· Power-down mode
    - Hold function: no operation (main oscillator and sub-oscillator still operate)
    - Stop function: no operation (only main oscillator stops but sub-oscillator still operates)
    - Dual-clock slow mode: system is operated by the sub-oscillator (FOSC = Fs and Fm is stopped)
· Five types of interrupts
    - Four internal interrupts (Divider0, Divider1, Timer 0, Timer 1)
    - One external interrupt (RC Port)
· LCD driver output
    - 40 segments x 4 commons
    - 1/4 duty 1/3 bias driving mode
    - Clock source should be the sub-oscillator clock in the dual-clock operation mode
· MFP output pin
    - Output is software selectable as modulating or nonmodulating frequency
    - Works as frequency output specified by Timer 1

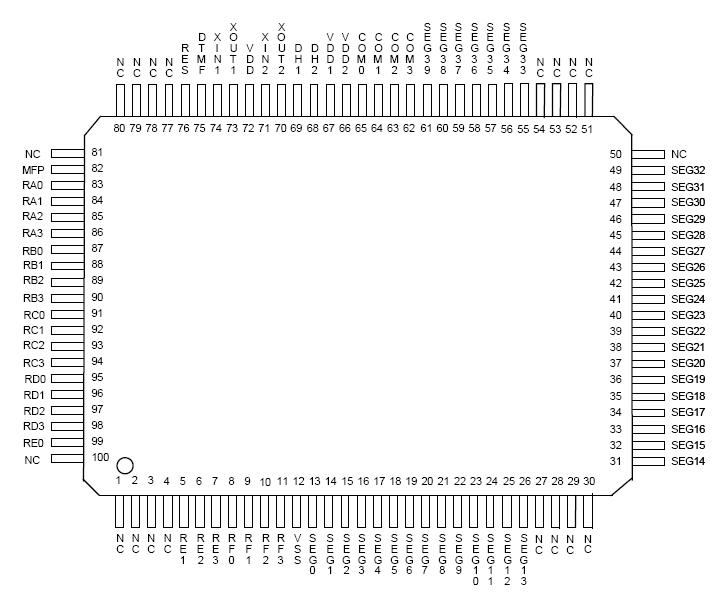

Pinout

Connection Diagram


Specifications

PARAMETER RATING UNIT
Supply Voltage to Ground Potential -0.3 to +7.0 V
Applied Input/Output Voltage -0.3 to +7.0 V
Power Dissipation 120 mW
Ambient Operating Temperature 0 to +70 °C
Storage Temperature -55 to +150 °C



Description

The W742C810 is a high-performance 4-bit microcontroller (mC) that provides an LCD driver. The device contains a 4-bit ALU, two 8-bit timers, two dividers (for two oscillators) in dual-clock operation, a 40 ´ 4 LCD driver, six 4-bit I/O ports (including 1 output port for LED driving), and one channel DTMF generator. There are also five interrupt sources and 8-level subroutine nesting for interrupt applications. The W742C810 operates on very low current and has one power reduction mode, that is the dual-clock slow operation, which helps to minimize power dissipation.
