W78C58

Features: · DC to 40 MHz extensive operating frequency· 256-byte on-chip scratch pad RAM· 32K-byte on-chip mask ROM· 64K-byte address space for external Program Memory· 64K-byte address space for external Data Memory· Three 16-bit timer/counters· Four 8-bit bit-addressable I/O ports· One extra 4-b...

product image

W78C58 Picture
See larger image
SeekIC No. : 004544992 Detail

W78C58: Features: · DC to 40 MHz extensive operating frequency· 256-byte on-chip scratch pad RAM· 32K-byte on-chip mask ROM· 64K-byte address space for external Program Memory· 64K-byte address space for ex...

W78C58 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W78C58
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DC to 40 MHz extensive operating frequency
· 256-byte on-chip scratch pad RAM
· 32K-byte on-chip mask ROM
· 64K-byte address space for external Program Memory
· 64K-byte address space for external Data Memory
· Three 16-bit timer/counters
· Four 8-bit bit-addressable I/O ports
· One extra 4-bit bit-addressable I/O port, additonal INT2 / INT3(Available on 44-pin PLCC/QFP package)
· Eight-source, two priority-level interrupts
· Low EMI emission mode
· Built-in programmable power-saving modes - Idle mode & Power-down mode
· Packages:
   - DIP 40: W78C58-16/24/40
   - PLCC 44: W78C58P-16/24/40
   - QFP 44: W78C58F-16/24/40
   - TQFP 44: W78C58M-16/24/40


Pinout

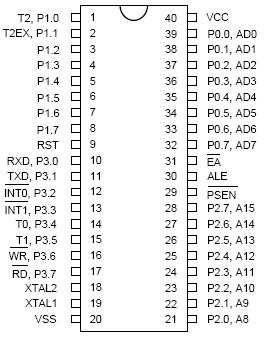

Connection Diagram


Specifications

PARAMETER SYMBOL MIN MAX UNIT
DC Power Supply VCC-VSS -0.3 +7.0 V
Input Voltage VIN VSS -0.3 VCC +0.3 V
Operating Temperature TA 0 70 °C
Storage Temperatute Tst -55 +150 °C



Description

The W78C58 is a derivative of the W78C52 microcontroller family that provides extended internal ROM. The chip has 32K bytes of mask ROM and 256 bytes of RAM.

This W78C58 provides an enhanced architecture that makes it more powerful and suitable for a variety of applications for general control systems. It provides on-chip 32KB mask ROM to accommodate large program codes, 256-bytes of non-volatile on-chip RAM, four 8-bit I/O ports, one 4-bit I/O port, three 16-bit timer/counters, eight sources with two-level interrupt structures, and on-chip oscillator clock circuits
