Product Details

Description



Features:

·  Supports Pentium™, Pentium™ Pro, AMD and Cyrix CPUs with I2C.
·  3 CPU clocks
·  13 SDRAM clocks for 3 DIMMs
·  6 PCI synchronous clocks.
·  Optional single or mixed supply:
(Vdd = Vddq4=Vddq3 = Vddq2b = 3.3V, Vddq2=2.5V) or
(Vdd = Vddq4=Vddq3 = 3.3V, Vddq2=Vdq2b = 2.5V)
·  Skew form CPU to PCI clock -1 to 4 ns, center 2.6 ns
·  SDRAM frequency synchronous or asynchronous to CPU clocks
·  Smooth frequency switch with selections from 66 to 133mhz(including 90MHz)
·  I2C 2-Wire serial interface and I2C read back
·  0.25%, 0.5% center type spread spectrum to reduce EMI
·  Programmable registers to enable/stop each output and select modes (mode as Tri-state or Normal )
·  MODE pin for power Management
·  48 MHz for USB
·  24 MHz for super I/O
·  48-pin SSOP package



Pinout

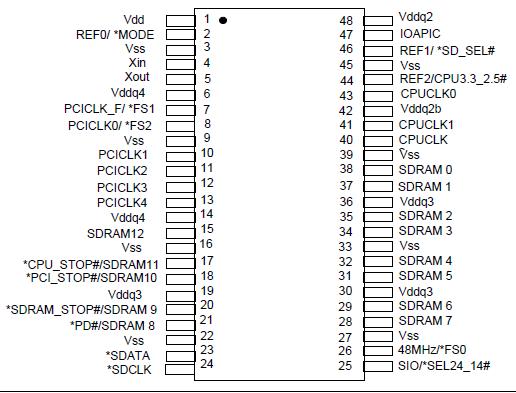

  Connection Diagram


Specifications

Symbol

PARAMETER

RATING
Vdd , VIN
Voltage on any pin with respect to GND
-0.5V to +7.0V
TSTG
Storage Temperature
-65° C to +150° C
TB
Ambient Temperature
-55° C to +125° C

TA

Operating Temperature

0°C to + 70°C




Description

The W83194R-81 is a Clock Synthesizer for SiS chipset. W83194R-81 provides all clocks required for high-speed RISC or CISC microprocessor such as AMD,Cyrix,Intel Pentium and also provides 16 different frequencies of CPU clocks frequency setting. All clocks are externally selectable with smooth transitions. The W83194R-81 makes SDRAM in synchronous or asynchronous frequency with CPU clocks.

The W83194R-81 provides I2C serial bus interface to program the registers to enable or disable each clock outputs and W83194R-81 provides the 0.25%, 0.5% center type spread spectrum to reduce EMI.

The W83194R-81 accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply.  High drive PCI and SDRAM CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50¡Ó 5% duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide better than 0.5V /ns slew rate.
