W83195AR-25

Features: · 2 CPU clocks (2.5V)· 3 3V-66 clocks (3.3V)· 12 SDRAM clocks for 3 DIMMs(3.3V)· 8 PCI synchronous clocks.· Optional single or mixed supply: (VDDR = VDDP=VDDS = VDD48 = VDD3 = 3.3V, VDDA=VDDC=2.5V)· Skew form CPU to PCI clock -1 to 4 ns, center 2.6 ns· Smooth frequency switch with select...

product image

W83195AR-25 Picture
See larger image
SeekIC No. : 004545141 Detail

W83195AR-25: Features: · 2 CPU clocks (2.5V)· 3 3V-66 clocks (3.3V)· 12 SDRAM clocks for 3 DIMMs(3.3V)· 8 PCI synchronous clocks.· Optional single or mixed supply: (VDDR = VDDP=VDDS = VDD48 = VDD3 = 3.3V, VDDA=V...

W83195AR-25 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W83195AR-25
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·  2 CPU clocks (2.5V)
·  3 3V-66 clocks (3.3V)
·  12 SDRAM clocks for 3 DIMMs(3.3V)
·  8 PCI synchronous clocks.
·  Optional single or mixed supply: (VDDR = VDDP=VDDS = VDD48 = VDD3 = 3.3V, VDDA=VDDC=2.5V)
·  Skew form CPU to PCI clock -1 to 4 ns, center 2.6 ns
·  Smooth frequency switch with selections from 66.8 to 200MHz
·  I2C 2-Wire serial interface and I2C read back
·  0.25% center and 0.5% center type spread spectrum
·  Programmable registers to enable/stop each output and select modes (mode as Tri-state or Normal )
·  48 MHz for USB
·  24 MHz for super I/O
·  Packaged in 56-pin SSOP


Pinout

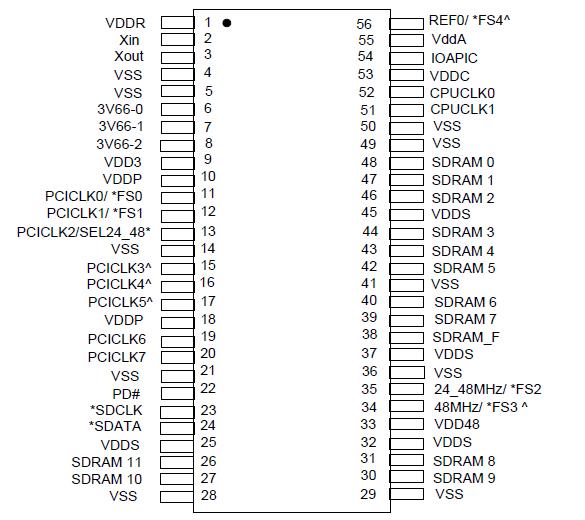

Connection Diagram


Specifications

Symbol

PARAMETER
RATING
Vdd , VIN
 Voltage on any pin with respect to GND
-0.5V to +7.0V
TSTG
 Storage Temperature
-65° C to +150° C
TB
 Ambient Temperature
-55° C to +125° C

TA

Operating Temperature

0°C to + 70°C




Description

The W83195AR-25 is a Clock Synthesizer for Intel 815 Solano chipset. W83195AR-25 provides all clocks required for high-speed RISC or CISC microprocessor and also provides 64 different frequencies of CPU, SDRAM, PCI, 3V66, IOAPIC clocks frequency setting. All clocks are externally selectable with smooth transitions.

The W83195AR-25 provides I2C serial bus interface to program the registers to enable or disable each clock outputs and provides 0.25% and 0.5% center type spread spectrum to reduce EMI.

The W83195AR-25 accepts a 14.318 MHz reference crystal as its input and runs on a 3.3V supply.

High drive PCI and SDRAM CLOCK outputs typically provide greater than 1 V /ns slew rate into 30 pF loads. CPU CLOCK outputs typically provide better than 1 V /ns slew rate into 20 pF loads as maintaining 50± 5% duty cycle. The fixed frequency outputs as REF, 24MHz, and 48 MHz provide  better than 0.5V /ns slew rate.
