W83196G-718

These products are not designed for use in life support appliances, devices, or systems where malfunction of these products can reasonably be expected to result in personal injury. Winbond customers using or selling these products for use in such applications do so at their own risk and agree to fully indemnify Winbond for any damages resulting from such improper use or sales.

Supply Voltage (Vdd=3.3V) ..........................3.0V ~ 3.6V
Supply Voltage (Vdd=2.5V)........................... 2.3V ~2.7V
Storage Temperature ......................- 65°C to + 150°C
Ambient Temperature ......................- 55°C to + 125°C
Operating Temperature .........................0°C to + 70°C
Input ESD protection (Human body model) ..........2000V
Stresses greater than those listed in this table may cause permanent damage to the device.Precautions should be taken to avoid application of any voltage higher than the maximum rated voltages to this circuit. Subjection to maximum conditions for extended periods may affect reliability. Unused inputs must always be tied to an appropriate logic voltage level (Ground or Vdd).

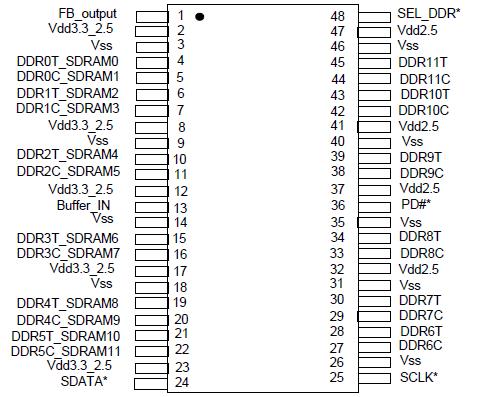

The W83196R-718 is a 2.5V/3.3V Clock buffer. W83196R_718 can support 4 D.D.R. DRAM DIMMs or 3 standard SDRAM and 2 D.D.R. DRAM DIMMs.

W83196R-718 can be incorporated with W83194BR-P4X or W83194BR-325.

The W83196R_718 provides I2C serial bus interface to program the registers to enable or disable each clock outputs. The W83196R_718 accepts a reference clock as its input and runs on a 3.3V or 2.5V supply.
