W83977G-A

IC I/O CONTROLLER 128-PQFP

product image

W83977G-A Picture
SeekIC No. : 003525351 Detail

W83977G-A: IC I/O CONTROLLER 128-PQFP

floor Price/Ceiling Price

US $ 3.9~3.9 / Piece | Get Latest Price
Part Number:
W83977G-A
Mfg:
Supply Ability:
5000

Price Break

  • Qty
  • 0~132
  • Unit Price
  • $3.9
  • Processing time
  • 15 Days
View more price & deliveries
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/3/28

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Quick Details

Series: - Manufacturer: Nuvoton Technology Corporation of America
Applications: - Interface: Parallel/Serial
High Level Output Current : - 50 mA Voltage - Supply: 5V
Package / Case: 128-BFQFP Supplier Device Package: 128-QFP (14x20)
Packaging: Tray

Description

Series: -
Mounting Type: Surface Mount
Applications: -
Packaging: Tray
Interface: Parallel/Serial
Voltage - Supply: 5V
Package / Case: 128-BFQFP
Manufacturer: Nuvoton Technology Corporation of America
Supplier Device Package: 128-QFP (14x20)


Features:

  Plug & Play 1.0A Compliant
  Support 13 IRQs, 4 DMA channels, full 16-bit addresses decoding
  Capable of ISA Bus IRQ Sharing
  Compliant with Microsoft PC97 Hardware Design Guide
  Support DPM (Device Power Management), ACPI
  Programmable configuration settings
  24 or 14.318 Mhz clock input



Pinout

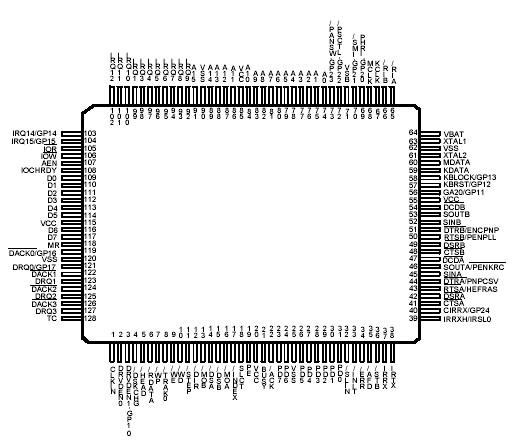

  Connection Diagram


Specifications

PARAMETER RATING UNIT
Power Supply Voltage -0.5 to 7.0 V
Input Voltage -0.5 to VDD+0.5 V
RTC Battery Voltage VBAT 4.0 to 1.8 V
Operating Temperature 0 to +70
Storage Temperature -55 to +150



Description

This data sheet covers two products: W83977F/G, and W83977AF/AG whose pin assignment, and most of the functions are the same. W83977AF/AG is an advanced version of W83977F/G featuring the FIR function.

W83977F/G, W83977AF/AG are evolving products from Winbond's most popular I/O chip W83877F --- which integrates the disk drive adapter, serial port (UART), IrDA 1.0 SIR, parallel port, configurable plug-and-play registers in one chip --- plus additional powerful features: ACPI, 8042 keyboard controller with PS/2 mouse support, Real Time Clock, 14 general purpose I/O ports, full 16-bit address decoding, TV remote IR (Consumer IR, supporting NEC, RC-5, extended RC-5, and RECS-80 protocols). In addition, W83977AF/AG provides the functions of IrDA 1.1 (MIR for 1.152M bps or FIR for 4M bps).

The disk drive adapter functions of W83977F/G, W83977AF/AG include a floppy disk drive controller compatible with the industry standard 82077/ 765, data separator, write pre-compensation circuit,decode logic, data rate selection, clock generator, drive interface control logic, and interrupt/ DMA logic. The wide range of functions integrated onto the W83977F/G, W83977AF/AG greatly reduces the number of components required for interfacing with floppy disk drives. The W83977F/G,W83977AF/AG supports up to four 360K, 720K, 1.2M, 1.44M, or 2.88M disk drives and data transfer rates of 250 Kb/s, 300 Kb/s, 500 Kb/s,1 Mb/s, and 2 Mb/s.

The W83977F/G, W83977AF/AG provide two high-speed serial communication ports (UARTs), one of which supports serial Infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. Both UARTs provide legacy speed with baud rate 115.2k and provide advanced speed with baud rate 230k, 460k, and 921k bps which support higher speed modems. W83977AF/AG alone provides independent 3rd UART (32-byte FIFO) dedicated for IR function.

The W83977F/G, W83977AF/AG supports one PC-compatible printer port (SPP), Bi directional Printer port (BPP) and also Enhanced Parallel Port (EPP) and Extended Capabilities Port (ECP). Through the printer port interface pins, also available are: Extension FDD Mode and Extension 2FDD Mode allowing one or two external floppy disk drives to be connected.

The configuration registers support mode selection, function enable/disable, and power down function selection. Furthermore, the configurable PnP features are compatible with the plug-and-play feature demand of Windows 95TM, which makes system resource allocation more efficient than ever.

W83977F/G, W83977AF/AG provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power management through SMI or SCI function pins. W83977F/G, W83977AF/AG also has auto power management to reduce power consumption.

The keyboard controller is based on 8042 compatible instruction set with a 2K Byte programmable ROM and a 256-Byte RAM bank. Keyboard BIOS firmware is available with optional AMIKEYTM-2,Phoenix MultiKey/42TM, or customer code.

The W83977F/G, W83977AF/AG provides a set of flexible I/O control functions to the system designer through a set of General Purpose I/O ports. These GPIO ports may serve as simple I/O or may be individually configured to provide a pre-defined alternate function.

W83977F/G, W83977AF/AG is made to fully comply with MicrosoftTM PC97 Hardware Design
Guide. IRQs, DMAs, and I/O space resource are flexible to adjust to meet ISA PnP requirement. Full 16-bit address decoding is also provided. Moreover W83977F/G, W83977AF/AG is made to meet the specification of PC97's requirement in the power management: ACPI and DPM (Device Power Management).
