Features:

General
·  Plug & Play 1.0A compatible
·  Support 13 IRQs, 4 DMA channels, full 16-bit address decoding
· Capable of ISA Bus IRQ Sharing
·  Compliant with Microsoft PC97 Hardware Design Guide
·  Support DPM (Device Power Management), ACPI
·  Report ACPI status interrupt by SCI signal issued from any of the 13 IQRs pins or GPIO xx
·  Programmable configuration settings
·  Single 24/48 Mhz clock input
FDC
·  Compatible with IBM PC AT disk drive systems
·  Variable write pre-compensation with track selectable capability
·  Support vertical recording format
· DMA enable logic
· 16-byte data FIFOs
·  Support floppy disk drives and tape drives
·  Detects all overrun and underrun conditions
·  Built-in address mark detection circuit to simplify the read electronics
·  FDD anti-virus functions with software write protect and FDD write
   enable signal (write data signal was forced to be inactive)
·  Support up to four 3.5-inch or 5.25-inch floppy disk drives
·  Completely compatible with industry standard 82077
·  360K/720K/1.2M/1.44M/2.88M format; 250K, 300K, 500K, 1M, 2M bps data transfer rate
·  Support 3-mode FDD, and its Win95 driver



Pinout

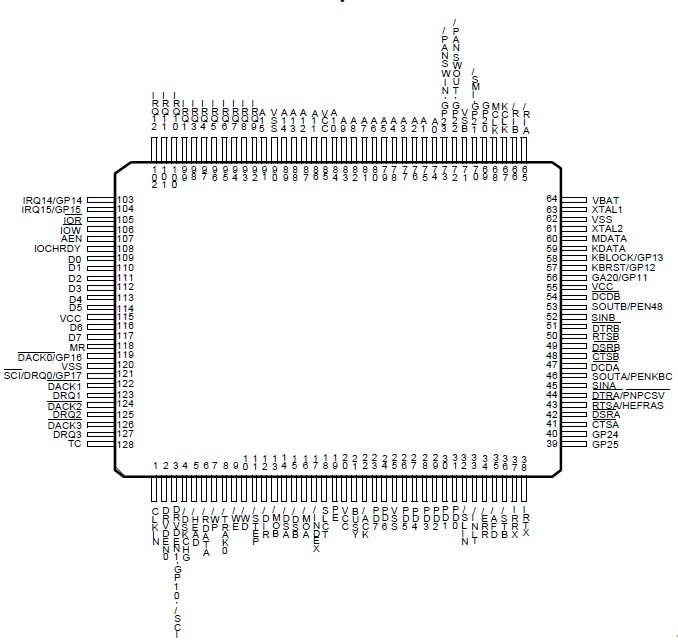

  Connection Diagram


Specifications

PARAMETER

RATING

UNIT

Power Supply Voltage

-0.5 to 7.0

V

Input Voltage

-0.5 to VDD+0.5

V

Battery Voltage VBAT

4.0 to 1.8

V

Operating Temperature

0 to +70

°C

Storage Temperature

-55 to +150

°C




Description

The W83977TF is an evolving product from Winbond's most popular I/O chip W83877F --- which integrates the disk drive adapter, serial port (UART), IrDA 1.0 SIR, parallel port, configurable plug-andplay registers for the whole chip --- plus additional powerful features: ACPI, 8042 keyboard controller with PS/2 mouse support, 23 general purpose I/O ports, full 16-bit address decoding, OnNow keyboard wake-up, OnNow mouse wake-up.

The disk drive adapter functions of W83977TF include a floppy disk drive controller compatible with the industry standard 82077/ 765, data separator, write pre-compensation circuit, decode logic, data rate selection, clock generator, drive interface control logic, and interrupt and DMA logic. The wide range of functions integrated into the W83977TF greatly reduces the number of components required for interfacing with floppy disk drives. The W83977TF supports four 360K, 720K, 1.2M, 1.44M, or 2.88M disk drives and data transfer rates of 250 Kb/s, 300 Kb/s, 500 Kb/s,1 Mb/s, and 2 Mb/s.

The W83977TF provides two high-speed serial communication ports (UARTs), one of which supports serial Infrared communication. Each UART includes a 16-byte send/receive FIFO, a programmable baud rate generator, complete modem control capability, and a processor interrupt system. Both UARTs provide legacy speed with baud rate up to 115.2k bps and also advanced speed with baud rates of 230k, 460k, or 921k bps which support higher speed modems.

The W83977TF supports one PC-compatible printer port (SPP), Bi-directional Printer port (BPP) and also Enhanced Parallel Port (EPP) and Extended Capabilities Port (ECP). Through the printer port interface pins, also available are: Extension FDD Mode and Extension 2FDD Mode allowing one or two external floppy disk drives to be connected.

The configuration registers support mode selection, function enable/disable, and power down function selection. Furthermore, the configurable PnP features are compatible with the plug-and-play feature demand of Windows 95TM, which makes system resource allocation more efficient than ever.

W83977TF provides functions that comply with ACPI (Advanced Configuration and Power Interface), which includes support of legacy and ACPI power management through SMI or SCI function pins. W83977TF also has auto power management to reduce power consumption. The keyboard controller is based on 8042 compatible instruction set with a 2K Byte programmable ROM and a 256-Byte RAM bank. Keyboard BIOS firmware is available with optional AMIKEY TM -2, Phoenix MultiKey/42 TM , or customer code.

The W83977TF provides a set of flexible I/O control functions to the system designer through a set of General Purpose I/O ports. These GPIO ports may serve as simple I/O or may be individually configured to provide a predefined alternate function.

W83977TF is made to fully comply with Microsoft PC97 Hardware Design Guide. IRQs, DMAs, and I/O space resource are flexible to adjust to meet ISA PnP requirement. Moreover W83977TF is made to meet the specification of PC97's requirement in the power management: ACPI and DPM (Device Power Management).

Another benifit is that W83977TF has the same pin assignment as W83977AF, W83977F, W83977ATF. This makes the design very flexible.
