Features:

· DTMF/pulse switchable dialer
· 32-digit redial memory
· Pulse-to-tone (*/T) keypad for long distance call operation
· Uses 5 × 5 keyboard
· Easy operation with redial, flash, pause, and */T keypads
· Pause, pulse-to-tone (*/T) can be stored as a digit in memory
· 0 or 9 dialing inhibition pin for PABX system or long distance dialing lock out
· Off-hook delay 300 mS in lock mode (DP will keep low for 300 mS while off hook)
· First key-in delay 300 mS output in lock mode
· Dialing rate (10, 20 ppS ) selected by bonding option
· Minimum tone output duration: 93 msec.
· Minimum intertone pause: 93 msec.
· Flash break time (73, 100, 300, 600 msec.) selectable by keypad, and the pause time is 1.0 sec.
· On-chip power-on reset
· Uses 3.579545 MHz crystal or ceramic resonator
· Packaged in 18, 20, or 22-pin plastic DIP
· The different dialers in the W91320N series are shown in the following table:


Pinout

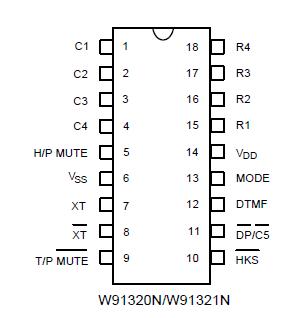

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91320N series are Si-gate CMOS ICs that provide the necessary signals for tone or pulse dialing. The W91320N series provide one-key redial, handfree dialing, hold, redial, and lock  functions
