W9145

Features: · DTMF/Pulse switchable dialer· Two by 32 digits for redial and save memory· Three by 16 digits for one-touch direct repertory· Ten by 16 digits for two-touch indirect repertory· Unlimited dialing length (redial inhibited if dialing length exceeds 32 digits in normal dialing)· Auto Pause...

product image

W9145 Picture
See larger image
SeekIC No. : 004545280 Detail

W9145: Features: · DTMF/Pulse switchable dialer· Two by 32 digits for redial and save memory· Three by 16 digits for one-touch direct repertory· Ten by 16 digits for two-touch indirect repertory· Unlimited...

W9145 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W9145
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DTMF/Pulse switchable dialer
· Two by 32 digits for redial and save memory
· Three by 16 digits for one-touch direct repertory
· Ten by 16 digits for two-touch indirect repertory
· Unlimited dialing length (redial inhibited if dialing length exceeds 32 digits in normal dialing)
· Auto Pause Access for PBX and toll service operations (3.1 seconds per pause)
· Easy operation with redial, store, auto and pause keypads
· Key tone output for recognition of valid keypad entry
· Call disconnect (CD) key for line break operation
· Mute key for speech mute
· Flash time: 98 mS, 305 mS or 600 mS
· Minimum tone output duration: 93 mS
· Minimum intertone pause: 93 mS
· 0 or 9 dialing inhibition pin for PABX system or long distance dialing lock out
· Automatic switching from pulse mode to tone mode by */T key operation
· Break/make ratio pin selectable
· Uses Form A keyboard or standard 5×5 matrix keyboard
· Uses inexpensive 3.579545 MHz television color-burst crystal
· Internally generated power-on reset
· Packaged in 22/24-pin DIP
· The different dialers in the W9145 series are shown in the following table:


Pinout

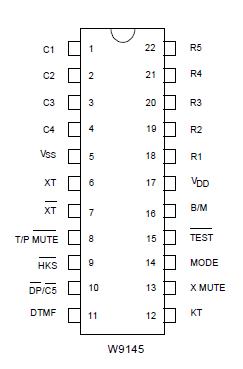

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W9145 series are Si-gate CMOS ICs that provide the necessary signals for either pulse or tone dialing. The W9145 series feature a key tone function, handfree dialing, a lock function, thirteen 16- digit automatic dialing memories, and two by 32-digit for redial and save memory.
