W91580

Features: · DTMF/Pulse switchable dialer· 31/32-digit LNB (last number buffer) memory (tone/pulse mode)· 31/32-digit mercury memory (tone/pulse mode)· 15/16-digit ×3 one-touch direct repertory memory (tone/pulse mode)· 15/16-digit ×20 direct or indirect repertory memory (tone/pulse mode)· Uses 9× ...

product image

W91580 Picture
See larger image
SeekIC No. : 004545294 Detail

W91580: Features: · DTMF/Pulse switchable dialer· 31/32-digit LNB (last number buffer) memory (tone/pulse mode)· 31/32-digit mercury memory (tone/pulse mode)· 15/16-digit ×3 one-touch direct repertory memor...

W91580 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
W91580
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· DTMF/Pulse switchable dialer
· 31/32-digit LNB (last number buffer) memory (tone/pulse mode)
· 31/32-digit mercury memory (tone/pulse mode)
· 15/16-digit ×3 one-touch direct repertory memory (tone/pulse mode)
· 15/16-digit ×20 direct or indirect repertory memory (tone/pulse mode)
· Uses 9× 5 keyboard
· Flash time: 98 mS, 305 mS, or 600 mS (selectable by keypad option)
· Pause time: 3.6 sec.
· Pause and P®T (pulse-to-tone) can be stored as a digit in memory
· Minimum tone output duration: 100 mS
· Minimum intertone pause: 100 mS
· On-chip power-on reset
· Uses 3.579545 MHz crystal or ceramic resonator
· Packaged in 22, 24, or 28-pin plastic DIP
· The different dialers in the W91580 series are shown in the following table:


Pinout

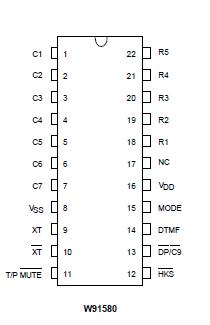

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATING
UNIT
DC Supply Voltage
VDD-VSS
-0.3 to +7.0
V
Input/Output Voltage
VIL
VSS -0.3
V
VIH
VDD +0.3
V
VOL
VSS -0.3
V
VOH
VDD +0.3
V
Power Dissipation
PD
120
mW
Operation Temperature
TOPR
-20 to +70
°C
Storage Temperature
TSTG
-55 to +150
°C
Note: Exposure to conditions beyond those listed under Absolute Maximum Ratings may adversely affect the life and reliability of the device.


Description

The W91580 series dialers are Si-gate CMOS IC tone/pulse switchable dialers containing a 24- channel automatic dialing memory, including a 16-digit × 3 emergency dialing memory, a 16-digit× 20 channel repertory memory that provides one-touch and three-touch dialing, and a 32-digit mercury memory. W91580 also provide flash, clear, hold, and one-key redial functions.
