WT50F5

Features: 8-bit single chip microcontroller with 8K bytes flash memory and 384bytes SRAM Wide voltage operating range from 2.7 V to 5.5 V On-chip RC oscillator runs at 2MHz and crystal oscillator can run up to 6.0 MHz 6 interrupt sources (external:1; internal:5) ; all sources have independent lat...

product image

WT50F5 Picture
See larger image
SeekIC No. : 004546863 Detail

WT50F5: Features: 8-bit single chip microcontroller with 8K bytes flash memory and 384bytes SRAM Wide voltage operating range from 2.7 V to 5.5 V On-chip RC oscillator runs at 2MHz and crystal oscillator c...

WT50F5 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WT50F5
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

8-bit single chip microcontroller with 8K bytes flash memory and 384bytes SRAM
Wide voltage operating range from 2.7 V to 5.5 V
On-chip RC oscillator runs at 2MHz and crystal oscillator can run up to 6.0 MHz
6 interrupt sources (external:1; internal:5) ; all sources have independent latches each and multiple interrupt control is available
I/O port (32 pins)
Port P0 8 pins (shared with analog inputs; 4 pins with 20 mA sink current)
Port P1 8 pins (20 mA sink current)
Port P2 8 pins (shared with SEG9~SEG16)
Port P3 8 pins (shared with SEG1~SEG8)
Interval Timer (Internal time base generator)
Operating current 2mA/4MHz@5V; providing standby mode (OSC is stopped and current consumption < 1 uA@5V) and key wake-up mode
Watchdog timer
Dual PWM
Dual 16-bit timer/counters
A/D converter module
12-bit resolution with ±2 LSB accuracy
External reference input, ADVRF
LCD driver (automatically display)
LCD direct drive (max. 8-digit display at 1/4 duty)
1/4, 1/3, 1/2 duties and 1/2, 1/3 biases can be selected by programming
Programming lock for software security; read/write protection (signature compare)
 Package: 40-pin PDIP


Pinout

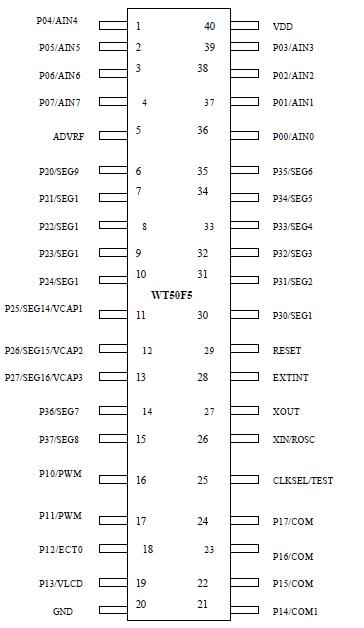

Connection Diagram


Description

The WT50F5 is a high-performance, low-cost, CMOS 8-bit single-chip microcontroller with 8Kbytes on-chip flash memory, an 8-channel 12-bit analog to digital converter and 16x4 LCD driver. This chip is suitable for variable applications, especially where analog signal (sensor output) to digital signal conversion, LCD display and short development cycle are required, including industrial control, consumer, communications, and security products.

This chip has 8-bit CPU, RAM, flash memory, I/Os, dual 16-bit timer/counters, interrupt controller, 16x4 LCD driver and an 8-channel 12-bit A/D converter. To be suitable for portable batterypowered applications, a power saving function is included.
