WT6248

Features: · 8-bit 6502 compatible CPU with 6MHz operating frequency· 48K bytes ROM, 1024 bytes SRAM+32 bytes bit-addressable SRAM· 12MHz crystal oscillator· 14 channels 8-bit PWM outputs· Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and clamp pul...

product image

WT6248 Picture
See larger image
SeekIC No. : 004546875 Detail

WT6248: Features: · 8-bit 6502 compatible CPU with 6MHz operating frequency· 48K bytes ROM, 1024 bytes SRAM+32 bytes bit-addressable SRAM· 12MHz crystal oscillator· 14 channels 8-bit PWM outputs· Sync signa...

WT6248 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WT6248
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/4

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· 8-bit 6502 compatible CPU with 6MHz operating frequency
· 48K bytes ROM, 1024 bytes SRAM+32 bytes bit-addressable SRAM
· 12MHz crystal oscillator
· 14 channels 8-bit PWM outputs
· Sync signal processor with H+V separation, H/V frequency counter, H/V polarity detection/control and clamp pulse output
· Six free-running sync signal outputs (Horizontal frequency up to 106KHz 85Hz@1600x1200)
· Self-test pattern
· DDC1/2B module for EDID1.3, EDID2.0 and Enhance EDID
· Fast mode master/slave I2C interface (up to 400KHz)
· Embedded USB function with endpoint 0 and endpoint 1
· Built-in 3.3V regulator for USB transceiver
· Watch-dog timer
· Maximum 28 programmable I/O pins
· One 8-bit programmable timer
· 6-bit A/D converter with 4 selectable inputs
· One external interrupt request input
· Low VDD reset


Pinout

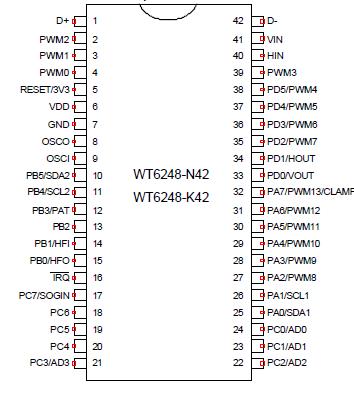

Connection Diagram


Specifications

Parameter
Min.
Max.
Units
DC Supply Voltage (VDD)
-0.3
7.0
V
Input and output voltage with respect to Ground
-0.3
VDD+0.3
V
Storage temperature
-25
125
Ambient temperature with power applied
-10
85

*Note: Stresses above those listed may cause permanent damage to the devices



Description

The WT6248 is a microcontroller for digital controlled monitor with Universal Serial Bus (USB) interface. It contains an 8-bit CPU, 48K bytes ROM, 1056 bytes RAM, 14 PWMs, parallel I/Os, SYNC signal processor, timer, DDC1/2B interface, master/slave I2C interface, low speed USB device module, 6-bit A/D converter and watch-dog timer.
