WT6801

Features: · Programmable horizontal resolutions up to 1530 dots per line· Horizontal frequency up to 120KHz· On-chip PLL up to 96MHz· Fully programmable character array of 15 rows by 30 columns· 12x18 dot matrix per character· 256 characters and graphic symbols ROM including 16 multi-color fonts· ...

product image

WT6801 Picture
See larger image
SeekIC No. : 004546882 Detail

WT6801: Features: · Programmable horizontal resolutions up to 1530 dots per line· Horizontal frequency up to 120KHz· On-chip PLL up to 96MHz· Fully programmable character array of 15 rows by 30 columns· 12x...

WT6801 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
WT6801
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

· Programmable horizontal resolutions up to 1530 dots per line
· Horizontal frequency up to 120KHz
· On-chip PLL up to 96MHz
· Fully programmable character array of 15 rows by 30 columns
· 12x18 dot matrix per character
· 256 characters and graphic symbols ROM including 16 multi-color fonts
· 8 colors per display character
· 7 colors per display character background
· 4 programmable windows
· Double character height and width control
· Programmable character height (18 to 71 lines)
· Programmable row-to-row spacing
· Programmable vertical and horizontal positioning for display screen center
· Bordering, shadowing and blinking effect
· Fade-in/Fade-out effect
· Video timing capture for auto sizing
· I2C interface with slave address $7AH
· Package type : 16-pin and 20-pin plastic DIP/SOP

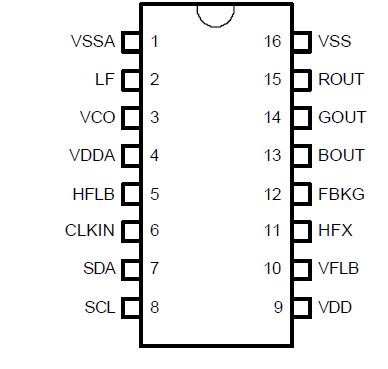

Pinout

Connection Diagram


Description

The WT6801 is designed to display color symbols or characters onto monitor. By storing display data in its RAM and control information in the registers via I2C interface, WT6801 can carry out screen refresh without any MCU supervision.
