X28VC256

Features: • Access Time: 45ns• Simple Byte and Page Write-Single 5V Supply-No External High Voltages or VPP ControlCircuits-Self-Timed-No Erase Before Write-No Complex Programming Algorithms-No Overerase Problem• Low Power CMOS:-Active: 80mA-Standby: 10mA• Software Data Pro...

product image

X28VC256 Picture
See larger image
SeekIC No. : 004547224 Detail

X28VC256: Features: • Access Time: 45ns• Simple Byte and Page Write-Single 5V Supply-No External High Voltages or VPP ControlCircuits-Self-Timed-No Erase Before Write-No Complex Programming Algori...

X28VC256 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X28VC256
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Access Time: 45ns
• Simple Byte and Page Write
-Single 5V Supply
-No External High Voltages or VPP Control
Circuits
-Self-Timed
-No Erase Before Write
-No Complex Programming Algorithms
-No Overerase Problem
• Low Power CMOS:
-Active: 80mA
-Standby: 10mA
• Software Data Protection
-Protects Data Against System Level
Inadvertent Writes
• High Speed Page Write Capability
• Highly Reliable Direct Write™ Cell
-Endurance: 100,000 Write Cycles
-Data Retention: 100 Years
• Early End of Write Detection
-DATA Polling
-Toggle Bit Polling


Pinout

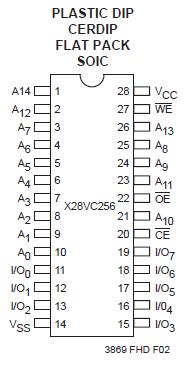

Connection Diagram


Specifications

Temperature under Bias
X28VC256 ......................................... 10 to +85
X28VC256I, X28VC256M ................ 65 to +135
Storage Temperature ..................... 65 to +150
Voltage on any Pin with
Respect to VSS ....................................... 1V to +7V
D.C. Output Current ......................................... 10mA
Lead Temperature (Soldering, 10 seconds)...... 300


Description

The X28VC256 is a second generation high performance CMOS 32K x 8 E2PROM. It is fabricated with Xicor's proprietary, textured poly floating gate technology, providing a highly reliable 5 Volt only nonvolatile memory.

The X28VC256 supports a 128-byte page write operation, effectively providing a 24ms/byte write cycle and enabling the entire memory to be typically rewritten in less than 0.8 seconds. The X28VC256 also features DATA Polling and Toggle Bit Polling, two methods of providing early end of write detection. The X28VC256 also supports the JEDEC standard Software Data Protection feature for protecting against inadvertent writes during power-up and power-down.

Endurance for the X28VC256 is specified as a minimum 100,000 write cycles per byte and an inherent data retention of 100 years.
