X68257

Features: • Multiplexed Address/Data Bus -Direct Interface to Popular 68HC11 Family• High Performance CMOS -Fast Access Time, 120ns -Low Power -60mA Active Maximum -500A Standby Maximum• Software Data Protection• Toggle Bit Polling-Early End of Write Detection• Page M...

product image

X68257 Picture
See larger image
SeekIC No. : 004547367 Detail

X68257: Features: • Multiplexed Address/Data Bus -Direct Interface to Popular 68HC11 Family• High Performance CMOS -Fast Access Time, 120ns -Low Power -60mA Active Maximum -500A Standby Maximum&...

X68257 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X68257
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Multiplexed Address/Data Bus
   -Direct Interface to Popular 68HC11 Family
• High Performance CMOS
   -Fast Access Time, 120ns
   -Low Power
   -60mA Active Maximum
   -500A Standby Maximum
• Software Data Protection
• Toggle Bit Polling
   -Early End of Write Detection
• Page Mode Write
   -Allows up to 128 Bytes to be Written in One Write Cycle
• High Reliability
   -Endurance: 10,000 Write Cycle
   -Data Retention: 100 Years
• 28-Lead PDIP Package
• 28-Lead SOIC Package
• 32-Lead PLCC Package

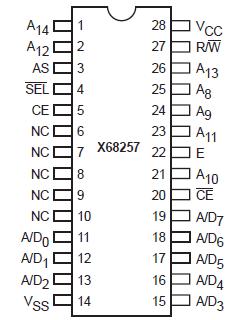

Pinout

Connection Diagram


Specifications

Temperature under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on any Pin with
           Respect to VSS .................................. 1V to +7V
D.C. Output Current ..................................................5mA
Lead Temperature
         (Soldering, 10 seconds) .............................. 300°C


Description

The X68257 is an 32K x 8 E2PROM fabricated with advanced CMOS Textured Poly Floating Gate Technology.The X68257 features a multiplexed address and data bus allowing direct interface to a variety of popular single-chip microcontrollers operating in expanded multiplexed mode without the need for additional interface circuitry.
