X9514

Features: • Push Button Controlled• Low Power CMOS -Active Current, 3mA Max -Standby Current, 200A Max• 31 Resistive Elements -Temperature Compensated -±20% End to End Resistance Range - 5V to +5V Range• 32 Wiper Tap Points -Logarithmic Taper -Wiper Positioned via Two Push ...

product image

X9514 Picture
See larger image
SeekIC No. : 004547542 Detail

X9514: Features: • Push Button Controlled• Low Power CMOS -Active Current, 3mA Max -Standby Current, 200A Max• 31 Resistive Elements -Temperature Compensated -±20% End to End Resistance R...

X9514 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
X9514
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/26

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Push Button Controlled
• Low Power CMOS
   -Active Current, 3mA Max
   -Standby Current, 200A Max
• 31 Resistive Elements
   -Temperature Compensated
   -±20% End to End Resistance Range
   - 5V to +5V Range
• 32 Wiper Tap Points
   -Logarithmic Taper
   -Wiper Positioned via Two Push Button Inputs
   -Slow & Fast Scan Modes
   -AUTOSTORE® Option
   -Manual Store Option
   -Wiper Position Stored in Nonvolatile Memory and Recalled on Power-Up
• 100 Year Wiper Position Data Retention
• X9514W = 10K
• Packages
   -8-Lead PDIP
   -8-Lead SOIC
   -14-Lead TSSOP

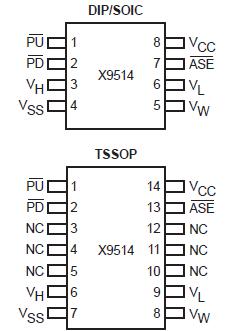

Pinout

Connection Diagram


Specifications

Temperature under Bias .................. 65°C to +135°C
Storage Temperature ....................... 65°C to +150°C
Voltage on PU, PD, ASE and VCC
          with Respect to VSS ........................... 1V to +7V
Voltage on VH and VL Referenced to VSS
V = |VHVL| ........................................................... 10V
Lead Temperature (Soldering 10 seconds)........... 300°C
Wiper Current ....................................................... ±1mA


Description

The Xicor X9514 is a push button controlled, logarithmic taper potentiometer and is ideal for push button controlled resistance trimming.

The X9514 is a resistor array composed of 31 resistive elements. Between each element and at either end are tap points accessible to the wiper element. The position of the wiper element is controlled by the PU and PD inputs.The position of the wiper can be automatically stored in E2 memory and then be recalled upon a subsequent poweron
operation.All Xicor nonvolatile products are designed and tested for applications requiring extended endurance and data retention.
