Features:

• Large Memory Support (up to 6 MB external)
• De-multiplexed Address/Data Bus
• Six Programmable Chip Selects Support for Unified Memory allows easy user modification of all code External ISP Flash support for easy code download
• Dynamic Bus Sizing each of 6 Chip Selects can be programmed for 8-bit or 16-bit bus.
• Dynamic Bus Timing each of 6 chip selects has individual programmable bus timing.
• 32 Programmable General Purpose I/O Pins
• Four UARTs with 230.4 kbps capability
• Eight DMA Channels


Pinout

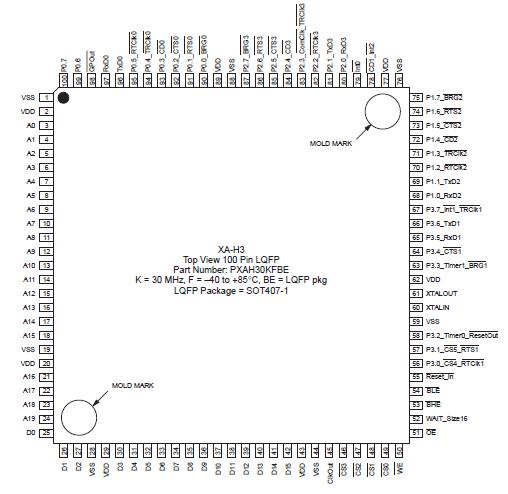

Connection Diagram


Specifications

Parameter
Rating
Unit
Operating temperature under bias
55 to +125
Storage temperature range
65 to +150
Voltage on any other pin to VSS
0.5 to VDD+0.5 V
v
Maximum IOL per I/O pin
15
mA
Power dissipation (based on package heat transfer, not device power consumption)
1.5
W



Description

The powerful 16-bit XA CPU core and rich feature set make the XA-H3 and XA-H4 devices ideal for high-performance real-time applications such as industrial control and networking. By supporting of up to 32 MB of external memory, these devices provide a low-cost solution to embedded applications of any complexity. Features like DMA, memory controller and four advanced UARTs help solve I/O intensive tasks with a minimum of CPU load.

The XA-H3 feature set is a subset of the XA-H4 (see Table 1). The XA-H3/H4 devices are members of the Philips XA (eXtended Architecture) family of high performance 16-bit microcontrollers.

The XA-H3 and XA-H4 are designed to significantly minimize the need for external components.
