XB1085

Features:

Maximum Output Current : More than 3.0A (within Pd)
Maximum Operating Voltage : 12V
Output Voltage : 1.5V, 1.8V, 2.5V, 3.3V, 5.0V, (XB1085P) Externally Set (XB1085K/ Reference Voltage 1.25V (TYP.))
Output Voltage Accuracy : ±1% ( Tj =25)
Dropout Voltage : 1.3V @ I_OUT=3.0A (TYP.)
Line Regulation : 0.015% (TYP.) <ADJ>
Load Regulation : 0.1% (TYP.) <ADJ>
Reference Voltage Pin Current: Less than 120A <ADJ>
Overcurrent Protection Circuit Built-In
Thermal Protection Circuit Built-In
Package : TO-252


Application

High efficiency linear regulators
Battery chargers
DVD drives
Set top boxes
Various battery drive equipment

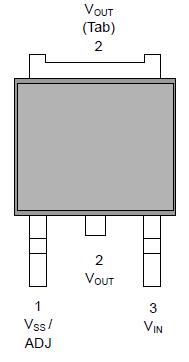

Pinout




Specifications

PARAMETER		SYMBOL	RATINGS	UNIT
Input Voltage		VIN	18	V
Power Dissipation	TO-252	Pd	1300 (*2)	mW
Operating Junction Temperature		Tj	125
Storage Temperature Range		Tstg	- 55 ~ 125

Note:
*1: Stresses greater than those listed above ratings may cause permanent damage to the device.
*2: The rating of the power dissipation is determined when mounted on the PCB.


Description

The XB1085 is a series of low dropout positive voltage regulators with a high output current capacity of 3.0A . Stable output can be maintained by using 10F (CIN) and 22F (CL) of tantalum capacitors.

The fixed voltage types (XB1085P series) are available in 1.5V, 1.8V, 2.5V, 3.3V, and 5.0V. The voltage adjustable type (XB1085K series) is also available which can set the output voltage with only two external resistors.

With an overcurrent and thermal protection circuit built-in, the IC is disabled for protection when an output current reaches limit current or junction temperature increases up to limit temperature.The XB1085 series is available in TO-252 package.
