XC164LM

Features: • High Performance 16-bit CPU with 5-Stage Pipeline 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution) 1-Cycle Multiplication (16 * 16 bit), Background Division (32 / 16 bit) in 21 Cycles 1-Cycle Multiply-and-Accumulate (MAC) Instructions Enhanced Boolean...

product image

XC164LM Picture
See larger image
SeekIC No. : 004547692 Detail

XC164LM: Features: • High Performance 16-bit CPU with 5-Stage Pipeline 25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution) 1-Cycle Multiplication (16 * 16 bit), Background Divis...

XC164LM Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC164LM
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/19

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High Performance 16-bit CPU with 5-Stage Pipeline
  25 ns Instruction Cycle Time at 40 MHz CPU Clock (Single-Cycle Execution)
  1-Cycle Multiplication (16 * 16 bit), Background Division (32 / 16 bit) in 21 Cycles
  1-Cycle Multiply-and-Accumulate (MAC) Instructions
  Enhanced Boolean Bit Manipulation Facilities
  Zero-Cycle Jump Execution
  Additional Instructions to Support HLL and Operating Systems
  Register-Based Design with Multiple Variable Register Banks
  Fast Context Switching Support with Two Additional Local Register Banks
  16 Mbytes Total Linear Address Space for Code and Data
  1024 Bytes On-Chip Special Function Register Area (C166 Family Compatible)
• 16-Priority-Level Interrupt System with up to 63 Sources, Sample-Rate down to 50 ns
• 8-Channel Interrupt-Driven Single-Cycle Data Transfer Facilities via Peripheral Event Controller (PEC), 24-Bit Pointers Cover Total Address Space
• Clock Generation via on-chip PLL (factors 1:0.15 . 1:10), or via Prescaler (factors 1:1 . 60:1)
• On-Chip Memory Modules
  2 Kbytes On-Chip Dual-Port RAM (DPRAM)
  2 Kbytes On-Chip Data SRAM (DSRAM, XC164LM-8F only)
  2 Kbytes On-Chip Program/Data SRAM (PSRAM)
  64 Kbytes (XC164LM-8F) or 32 Kbytes (XC164LM-4F) On-Chip Program Memory (Flash Memory)
• On-Chip Peripheral Modules
  16-Channel General Purpose Capture/Compare Unit (CAPCOM2)
  Multi-Functional General Purpose Timer Unit with 5 Timers
  Two Synchronous/Asynchronous Serial Channels (USARTs)
  Two High-Speed-Synchronous Serial Channels
  On-Chip Real Time Clock, Driven by the Main Oscillator
• Idle, Sleep, and Power Down Modes with Flexible Power Management
• Programmable Watchdog Timer and Oscillator Watchdog
• Up to 47 General Purpose I/O Lines, partly with Selectable Input Thresholds and Hysteresis
• On-Chip Bootstrap Loader
• On-Chip Debug Support via JTAG Interface


Pinout

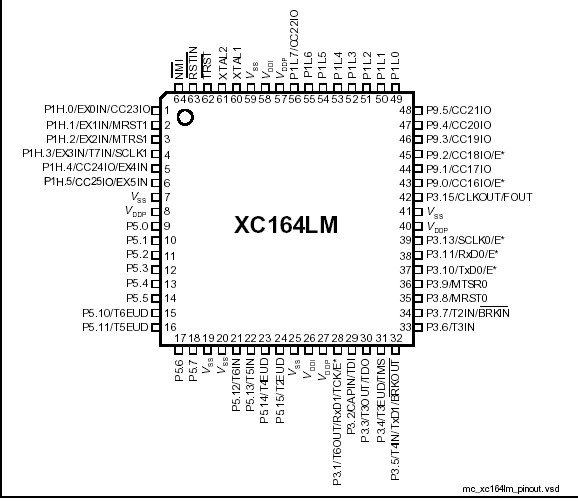

Connection Diagram


Specifications

Parameter Symbol Limit Values Unit Notes
Min. Max.
Storage temperature TST -65 150 °C -
Junction temperature TJ -40 150 °C under bias
Voltage on VDDI pins with
respect to ground (VSS)		 VDDI -0.5 3.25 V -
Voltage on VDDP pins with
respect to ground (VSS)		 VDDP -0.5 6.2 V -
Voltage on any pin with
respect to ground (VSS)		 VIN -0.5 VDDP + 0.5
 V -
Input current on any pin
during overload condition		 - -10 10 mA -
Absolute sum of all input
currents during overload
condition		 - - |100| mA -



Description

The XC164LM derivatives are high-performance members of the Infineon XC166 Family of full featured single-chip CMOS microcontrollers. These  XC164LM devices extend the functionality and performance of the C166 Family in terms of instructions (MAC unit), peripherals, and speed. They combine high CPU performance (up to 40 million instructions per second) with high peripheral functionality and enhanced IO-capabilities. They also provide clock generation via PLL and various on-chip memory modules such as program Flash, program RAM, and data RAM.
