Product Details

Description



Features:

Output Frequency : 3MHz ~ 30MHz (Q0=fCLKin × N/M)
Reference Oscillation (fCLKin) : 12KHz ~ 35MHz
Divider Ratio (M) : Selectable from divisions of 1, 3 ~ 2047
Multiplier Ratio (N) : Selectable from multiplications of 6 ~ 2047
                               Output : 3-State
                               Q1 output selectable from input reference
                               oscillation, input reference oscillation/2,
                               GND, comparative frequency.
Operating Voltage Range: 2.97V ~ 5.5V
Low Power Consumption : CMOS (stand-by function included)*1
Ultra Small Package : SOT-26 mini mold
                                *1 High output impedance during standby

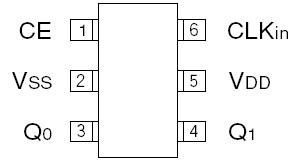

Pinout

  Connection Diagram

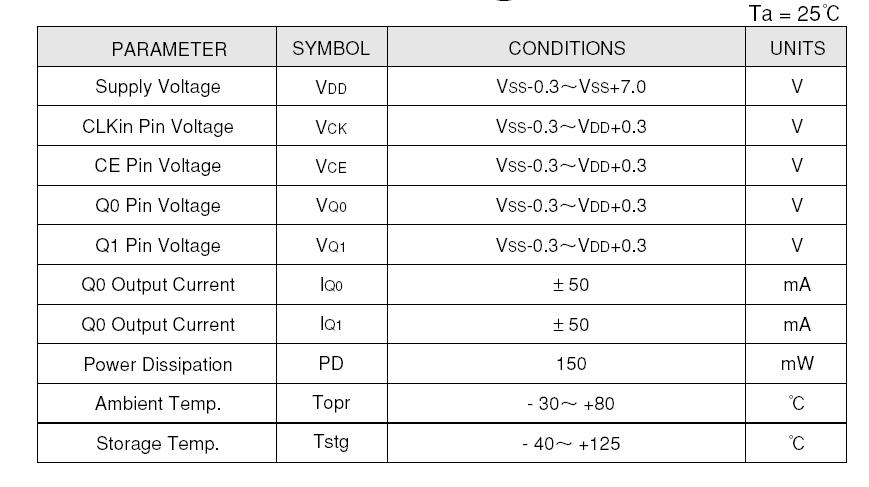

Specifications

  Connection Diagram


Description

The XC25BS5 series are high frequency, low power consumption PLL clock generator ICs with divider circuit & multiplier PLL circuit. Laser trimming gives the option of being able to select from divider ratios (M) of 1,3 to 2047 and multiplier ratios (N) of 6 to 2047.

Output frequency (Q0) of XC25BS5 is equal to reference oscillation (fCLKin) multiplied by N/M, within a range of 3MHz to 30MHz. Q1 output is selectable from input reference frequency (f0), input reference frequency/2 (f0/2), ground (GND), and comparative frequency (f0/M). Further, comparative frequencies, within a range of 12KHz to 500KHz, can be obtained by dividing the reference oscillation. By halting operation via the CE pin, consumption current can be controlled and output will be one of high-impedance.
