XC33989

Features: • Vdd1: Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function• Vdd1: Total current capability 200mA.• V2: Tracking function of Vdd1 regulator. Control circuitry for external bipolar ballast transistor for high flexibil...

product image

XC33989 Picture
See larger image
SeekIC No. : 004547829 Detail

XC33989: Features: • Vdd1: Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function• Vdd1: Total current capability 200mA.• V2: Tracking fun...

XC33989 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC33989
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Vdd1: Low drop voltage regulator, current limitation, over temperature detection, monitoring and reset function
• Vdd1: Total current capability 200mA.
• V2: Tracking function of Vdd1 regulator. Control circuitry for external bipolar ballast transistor for high flexibility in choice of peripheral voltage and current supply.
• Four operational modes (normal, stand-by, stop and sleep mode)
• Low stand-by current consumption in stop and sleep modes
• High speed 1MBaud CAN physical interface.
• Four external high voltage wake-up inputs, associated with HS1 Vbat switch
• 150mA output current capability for HS1 Vbat switch allowing drive of external switches pull up resistors or relays
• Vsup failure detection
• Nominal DC operating voltage from 5.5 to 27V, extended range down to 4.5V.
• 40V maximum transient voltage
• Programmable software time out and window watchdog
• Safe mode with separate outputs for Watchdog time out and Reset
• Wake up capabilities (four wake up inputs, programmable cyclic sense, forced wake up, CAN interface, SPI and stop mode over current)
• Interface with MCU through SPI


Pinout

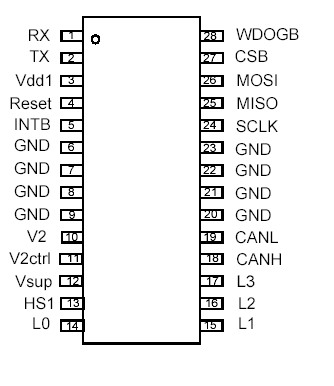

Connection Diagram


Specifications

Ratings
Symbol
Min
Typ
Max
Unit
Supply Voltage at Vsup
- Continuous voltage
- Transient voltage (Load dump)
Logic Inputs (Rx, Tx, MOSI, MISO, CSB, SCLK,
Reset, WDOGB, INTB)
Vsup
Vsup

Vlog
-0.3

- 0.3
Internally limited
27
40

Vdd1+0.3
V
V
A
Output current Vdd1

HS1
- voltage
- output current
ESD voltage (HBM 100pF, 1.5k)
- HS1, L0, L1, L2, L3
- All other pins
ESD voltage (Machine Model) All pins except
CANH and CANL
I


V
I

Vesdh

Vesdm
-0.3



-4

-2

-200

Internally limited
Vsup+0.3



4
2


200
VA
kV
V
L0, L1,L2, L3
- DC Input voltage
- DC Input current
- Transient input voltage (according to ISO7637
specification) and with external component (see figure 1 below).
Vwu DC
-0.3
-2
-100
40
2
+100
V
mA
V
THERMAL RATINGS
Junction Temperature
Storage Temperature
Ambient Temperature (for info only)
Thermal resistance junction to gnd pins (note 1)
Tj
Ts
Ta
Rthj/p
- 40
- 55
- 40
+150
+165
+125
20
°C
°C
°C
°C/W
