Maximum Output Current
: 250mA
(within max. power dissipation, VOUT = 5.0V)
Output Voltage Range
: 2.0V ~ 6.0V in 0.1V increments
(1.5V ~ 1.9V for custom products)
Highly Accurate: Output voltage ±2%
(±1% for semi-custom products)
Low Power Consumption
: Typ. 2.0A @ VOUT=5.0V
Output Voltage Temperature Characteristics
: Typ. ±100ppm/
Input Stability : Typ. 0.2%/V
Small Input-Output Differential
: IOUT = 100mA @ VOUT = 5.0V with a
0.12V differential.
Ultra Small Packages
: SOT-23 (150mW) mini-mold,
SOT-89 (500mW) mini-power mold
TO-92 (300mW)
PARAMETER |
SYMBOL |
RATINGS |
UNITS | |
Input Voltage |
VIN |
12 |
V | |
Output Current |
IOUT |
500 |
| |
Output Voltage |
VOUT |
VSS-0.3 ~ VIN+0.3 |
V | |
Continuous |
SOT-23 |
Pd |
150 |
mW |
SOT-89 | 500 | |||
TO-92 | 300 | |||
Operating Ambient Temperature |
Topr | 40 ~ +85 | ||
40 ~ +125 |
The XC62FP series is a group of positive voltage output, three-pin regulators, that provide a high current even when the input/output voltage differential is small. Low power consumption and high accuracy is achieved through CMOS and laser trimming technologies.
The XC62FP consists of a high-precision voltage reference, an error amplification circuit, and a current limited output driver. Transient response to load variations have improved in comparison to the existing series.

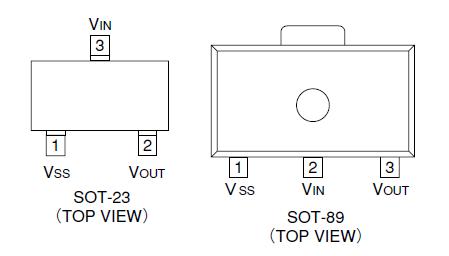

SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
