XC62G

Maximum Output Current
                                   : 150mA (within max. power
                                     dissipation,VOUT=3.0V)
Output Voltage Range: 2.1V~5.0V in 0.1V increments
Highly Accurate           : Set-up voltage ±2%
                                     (±1% for semi-custom products)
Low Power Consumption
                                   : TYP. 13A (VOUT= 3.0V),
                                      TYP 23A (VOUT=3.0V semi-custom,
                                      high-speed versions),
                                      TYP 0.1A (Stand-by mode)
Output Voltage Temperature Characteristics
                                    : TYP ±100ppm/°C
Input Stability              : TYP 0.2%/V

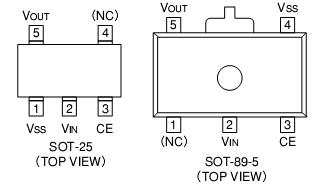

Ultra Small Packages   : SOT-25 (150mW) mini-mold
                                      SOT-89-5 (500mW) mini-power mold

Battery-powered Equipm

Voltage supplies for cellular phones

Cameras, Video Recorders

Palmtops

The XC62G series are highly precise, low power consumption positive voltage regulators, manufactured using CMOS and laser trimming technologies. The series achieves high output currents, with low input- output voltage differentials, and consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation. With good transient responses, output remains stable even during load changes. Also, having high ripple rejection ratios, the series can be used with low power supply noise. The CE input enables the output to be turned off, resulting in reduced power consumption. SOT-25 (150mW) and SOT-89-5 (500mW) packages are available. With regards to the CE function, as well as the positive logic XC62GR series, a negative logic XC62GP series (custom) is also available.
