XC62HR

Features: `Maximum Output Current: 165mA (within Maximum power dissipation, VOUT=3.0V)`Output Voltage Range: 2.0V ~ 6.0V in 0.1V increments (1.1V to 1.9V semi-custom)`Highly Accurate: Set-up Voltage ±2% (±1% for semi-custom products)`Low power consumption: TYP 3.0A (VOUT=3.0, Output enabled) TYP ...

product image

XC62HR Picture
See larger image
SeekIC No. : 004547950 Detail

XC62HR: Features: `Maximum Output Current: 165mA (within Maximum power dissipation, VOUT=3.0V)`Output Voltage Range: 2.0V ~ 6.0V in 0.1V increments (1.1V to 1.9V semi-custom)`Highly Accurate: Set-up Voltage...

XC62HR Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC62HR
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

`Maximum Output Current: 165mA (within Maximum power dissipation, VOUT=3.0V)
`Output Voltage Range: 2.0V ~ 6.0V in 0.1V increments (1.1V to 1.9V semi-custom)
`Highly Accurate: Set-up Voltage ±2% (±1% for semi-custom products)
`Low power consumption: TYP 3.0A (VOUT=3.0, Output enabled)
                                          TYP 0.1A (Output disabled)
`Output voltage temperature characteristics: TYP ±100ppm/
`Input stability: TYP 0.2%/V
Ultra small package: SOT-25 (150mW) mini-mold
                                SOT-89-5 (500mW) mini-power mold


Application

· Battery Powered Instruments
· Voltage supplies for cellular phones
· Cameras and Video Recorders
· Palmtops


Pinout

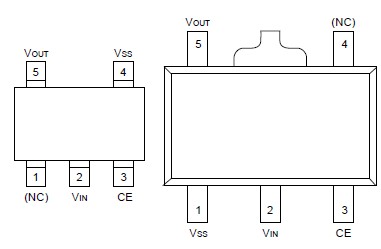

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNITS
Input Voltage
VIN
12
V
Output Current
IOUT
500
mA
Output Voltage
VOUT
VSS-0.3 ~ VIN+0.3
V
CE Input Voltage
VCE
VSS-0.3 ~ VIN+0.3
V
Continuous Total
Power Dissipation
SOT-25
Pd
150
mW
SOT-89-5
Pd
500
Operating Ambient Temperature
Topr
-30 ~ +80
Storage Temperature
Tstg
-40 ~ +25



Description

The XC62HR series are highly precise, low power consumption, positive voltage regulators, manufactured using CMOS and laser trimming technologies. The series consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation. By way of the CE function, with output turned off, the series enters standby. In the stand-by mode, power consumption is greatly reduced. SOT-25 (150mW) and SOT-89-5 (500mW) packages are available. In relation to the CE function, as well as the positive logic XC62HR series, a negative logic XC62HP series (custom) is also available.
