Product Details

Description



Features:

Ultra Small Input-Output Voltage Differential

                                        : 50mA output possible with a 0.12V
                                          differential (VOUT=-5.0V).

differential (VOUT=-5.0V).
Maximum Output Current  : 100mA (within max. power
                                            dissipation, VOUT= -5.0V)
Output Voltage Range       : -2.1V ~ -6.0V in 0.1V increments.
                                            -5.0, -4.0, -3.0V, -2.5V standard.
                                            (All other voltages are semi-custom)
Highly Accurate                  : Output voltage ±2%
                                            (±1% for semi-custom products)
Low Power Consumption   : Typ. 3.0A @ VOUT= -5.0V
Output Voltage Temperature Characteristics
                                           : Typ. ±100ppm/°C
Input Stability                     : Typ. 0.1%/V
Ultra Small Packages          : SOT- 23 (150mW) mini-mold,
                                             SOT-89 (500mW) mini-power mold
                                             TO-92 (300mW)




Application

Battery Powered Equipment

Portable & Cellular Phones

Various Portable Equipment

Power Supply for GaAs Applications

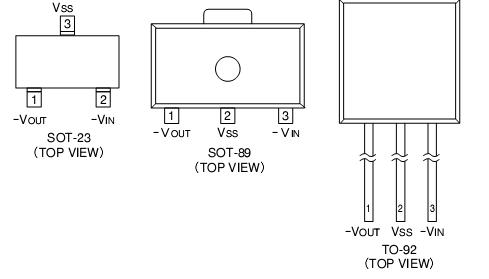

Pinout

  Connection Diagram


Description

The XC62K series are highly precise, low power consumption, negative voltage regulators, manufactured using CMOS and laser trimming technologies. The XC62K series achieves high output currents with small input- output voltage differentials, and consists of a high precision voltage reference, an error correction circuit, and an output driver with current limitation.
SOT-23 (150mW), SOT-89 (500mW) and TO-92 (300mW) packages are available.
