XC74UL08AA

Features: ·High Speed Operation : tpd=2.6ns TYP·Operating Voltage Range: 2V~5.5V·Low Power Consumption: 1µA (max)·Ultra Small Package : SSOT-25 and SOT-25Application·Palmtops·Digital EquipmentPinoutSpecifications PARAMETER SYMBOL RATINGS UNITS Power Supply Voltage VCC ...

product image

XC74UL08AA Picture
See larger image
SeekIC No. : 004548015 Detail

XC74UL08AA: Features: ·High Speed Operation : tpd=2.6ns TYP·Operating Voltage Range: 2V~5.5V·Low Power Consumption: 1µA (max)·Ultra Small Package : SSOT-25 and SOT-25Application·Palmtops·Digital Equipment...

XC74UL08AA Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
XC74UL08AA
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/4/18

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

·High Speed Operation : tpd=2.6ns TYP
·Operating Voltage Range: 2V~5.5V
·Low Power Consumption: 1µA (max)
·Ultra Small Package : SSOT-25 and SOT-25


Application

·Palmtops
·Digital Equipment


Pinout

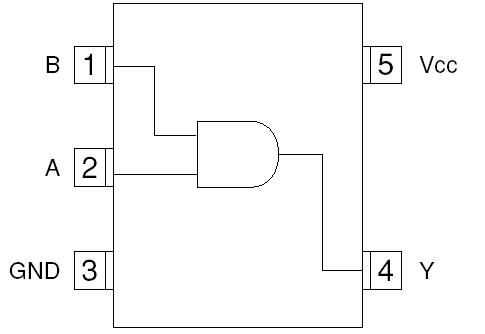

Connection Diagram


Specifications

PARAMETER
SYMBOL
RATINGS
UNITS
Power Supply Voltage
VCC
-0.5 ~ +6.0
V
Input Voltage
VIN
-0.5 ~ +6.0
V
Output Voltage
VOUT
-0.5 ~ VCC +0.5
V
Input Diode Current
IIK
-20
mA
Output Diode Current
IOK
±20
mA
Output Current
IOUT
±25
mA
VCC ,GND Current
ICC, IGND
±50
mA
Continuous Total
Power Dissipation (Ta=55°C)
Pd
150
mW
Storage Temperature
Tstg
-65 ~ +150
°C
Note: Voltage is all Ground standardized.


Description

The XC74UL08AA is a 2-input CMOS AND gate, manufactured using silicon gate CMOS fabrication.

CMOS low power circuit operation makes high speed LS-TTL operations achievable.

With a wave forming buffer connected internally, stabilized output can be achieved as the circuit offers high noise immunity.

As the XC74UL08AA is integrated into mini molded, SSOT-25 and SOT-25 packages, high density mounting is possible.
