Logic Type: Buffer/Line Driver, Non-Inverting
Number of Bits per Element: 1
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Current - Output High, Low: 8mA, 8mA
Voltage - Supply: 2 V ~ 5.5 V
Number of Elements: 2
Packaging: Tape & Reel (TR)
Package / Case: 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Series: 74WL
Manufacturer: Torex Semiconductor Ltd
Supplier Device Package: 8-MSOPB
Features: ·High Speed Operations : tpd = 3.8ns TYP (VCC=5V)
·Operating Voltage Range: 2V ~ 5.5V
·Low Power Consumption: 2µA (max)
·Small Package : MSOP-8BApplication·Palmtops

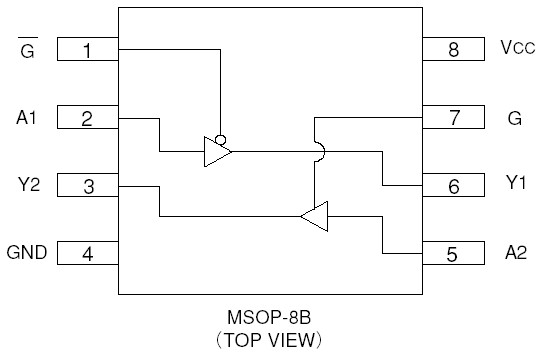

·Digital EquipmentPinout
Specifications
| PARAMETER |
SYMBOL |
RATINGS |
UNITS |
| Power Supply Voltage |
VCC |
-0.5~+6.0 |
V |
| Input Voltage |
VIN |
-0.5~+6.0 |
V |
| Output Voltage |
VOUT |
-0.5~VCC+0.5 |
V |
| Input Diode Current |
IIK |
-20 |
mA |
| Output Diode Current |
IOK |
±20 |
mA |
| Switch Output Current |
IOUT |
±25 |
mA |
| VCC,GND Current |
ICC,IGND |
±50 |
mA |
| Power Dissipation(Ta=25) |
Pd |
300 |
mW |
| Storage Temperature |
Tstg |
-65~+150 |
|
DescriptionXC74WL241ASR is Dual Bus Buffer manufactured using silicon gate CMOS processes. The small quiescent current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL.
With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity.As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
