XC74WL74AASR

Type: D-Type
Number of Elements: 1
Number of Bits per Element: 1
Trigger Type: Positive Edge
Operating Temperature: -40°C ~ 85°C
Mounting Type: Surface Mount
Function: Set(Preset) and Reset
Output Type: Differential
Current - Output High, Low: 8mA, 8mA
Voltage - Supply: 2 V ~ 5.5 V
Delay Time - Propagation: 4.6ns
Packaging: Tape & Reel (TR)
Frequency - Clock: 170MHz
Package / Case: 8-TSSOP, 8-MSOP (0.110", 2.80mm Width)
Series: 74WL
Manufacturer: Torex Semiconductor Ltd


Features:

·High Speed Operations : fmax = 170MHz TYP (V_CC=5V)
·Operating Voltage Range: 2V ~ 5.5V
·Low Power Consumption: 1µA (max)
·Small Package : MSOP-8B


Application

·Palmtops
·Digital Equipment

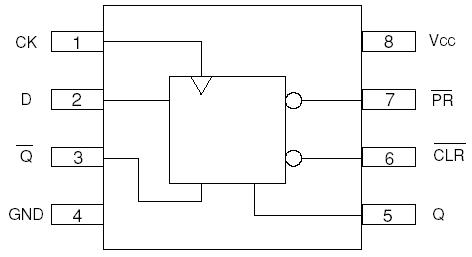

Pinout




Specifications

Characteristics	Symbol	Rating	Unit
Supply voltage range	VCC	−0.5~+6.0	V
DC input voltage	VIN	−0.5~+6.0	V
DC output voltage	VOUT	−0.5~VCC + 0.5	V
Input diode current	IIK	−20	mA
Output diode current	IOK	±20	mA
DC output current	IOUT	±25	mA
DC VCC/ground current	ICC,IGND	±50	mA
Power dissipation	PD	300	mW
Storage temperature	Tstg	−65~+150

Description

XC74WL74AASR is D-Type Flip Flop manufactured using silicon gate CMOS processes. The small quiescent current, which is one of the features of the CMOS logic, gives way to high speed operations which enables LS-TTL.

With wave forming buffers connected internally, stabilized output can be achieved as the series offers high noise immunity.

As the series is integrated into a mini molded, MSOP-8B package, high density mounting is possible.
