Features:

• Pin-alike Exar's XR16L2750 and ST16C2550 48- TQFP package but with additional CLK8/16, CLKSEL and HDCNTL inputs
• Two independent UART channels
• Register set compatible to 16C550
• Up to 6.25 Mbps at 5V, and 4 Mbps at 3.3V
• Transmit and Receive FIFOs of 128 bytes
• Programmable TX and RX FIFO Trigger Levels
• Transmit and Receive FIFO Level Counters
• Automatic Hardware (RTS/CTS) Flow Control
• Selectable Auto RTS Flow Control Hysteresis
• Automatic Software (Xon/Xoff) Flow Control
• Automatic RS-485 Half-duplex Direction Control Output
• Wireless Infrared (IrDA 1.0) Encoder/Decoder
• Automatic sleep mode
• Full modem interface
• Device Identification and Revision
• Crystal oscillator or external clock input
• Industrial and commercial temperature ranges
• 48-TQFP and 44-PLCC packages






Application

• Portable Appliances
• Telecommunication Network Routers
• Ethernet Network Routers
• Cellular Data Devices
• Factory Automation and Process Controls





Pinout

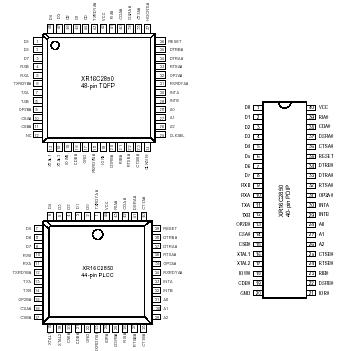

  Connection Diagram




Specifications

Specifications
CH 2
CPUInterface Intel
Data Rate@5/3.3/2.5V 6.2/4.0/na @8X
Tx/RxFIFO(Bytes) 128/128
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.97-5.5
Pkgs PLCC-44 TQFP-48


Specifications
CH 2
CPUInterface Intel
Data Rate@5/3.3/2.5V 6.2/4.0/na @8X
Tx/RxFIFO(Bytes) 128/128
Tx/RxFIFOCtrs Yes
Tx/RxFIFOINT Trig Program/ Program
AutoRTS/CTS Yes
IrDaSup Yes
5VTolInputs Yes
Sup V 2.97-5.5
Pkgs PLCC-44 TQFP-48


Power Supply Range 7 Volts
Voltage at Any Pin GND-0.3 V to 7 V
Operating Temperature -40o to +85
Storage Temperature -65o to +150
Package Dissipation 500 mW





Description

Description

The XR16C2850 (2850) is an enhanced dual universal asynchronous receiver and transmitter (UART). Enhanced features include 128 bytes of TX and RX FIFOs, programmable TX and RX FIFO trigger level, FIFO level counters, automatic (RTS/CTS) hardware and (Xon/Xoff) software flow control, automatic RS-485 half duplex direction control output and data rates up to 6.25 Mbps at 5V and 8X sampling clock. Onboard status registers provide the user with operational status and data error flags. An internal loopback capability allows system diagnostics. The 2850 has a full modem interface and can operate at 2.97V to 5.5V and is pin-to-pin compatible to Exar's ST16C2550 and XR16L2750 except the 48-TQFP package. The 2850 register set is compatible to the industry standard ST16C2550 and is available in 48-pin TQFP and 44-pin PLCC packages.
